SS-74800-125

Active

BEL MAGNETIC SOLUTIONS

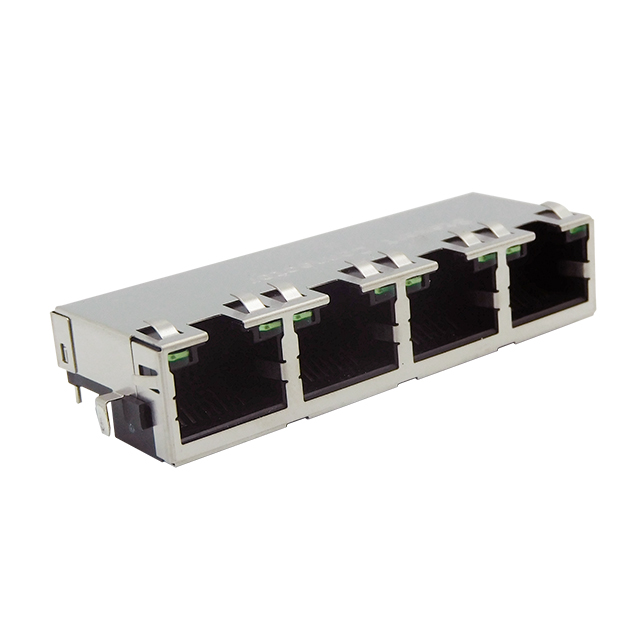

JACK 1X4 MID-PLANE GRN LED 1G

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

JACK 1X4 MID-PLANE GRN LED 1G

Technical Specifications

Parameters and characteristics for this part

Specification	SS-74800-125

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Mid Mount, Through Hole
Number of Ports	4
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Ratings	LED Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions/Contacts	Tab Direction	Contact Material	Orientation	Mounting Type	Number of Rows	Housing Material	Termination	Number of Ports
BEL MAGNETIC SOLUTIONS SS-74800-146	Gold	50 µin	1.27 µm	Cat5e	Green Yellow	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-143	Gold	50 µin	1.27 µm	Cat5e	Does Not Contain LED	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-125	Gold	30 Áin	0.76 Ám	Cat5e	Green - Green	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	4
BEL MAGNETIC SOLUTIONS SS-74800-139	Gold	50 µin	1.27 µm	Cat5e	Yellow - Green	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-142	Gold	50 µin	1.27 µm	Cat5e	Green Yellow	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-144	Gold	50 µin	1.27 µm	Cat5e	Yellow - Green	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	384	$ 10.05

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
