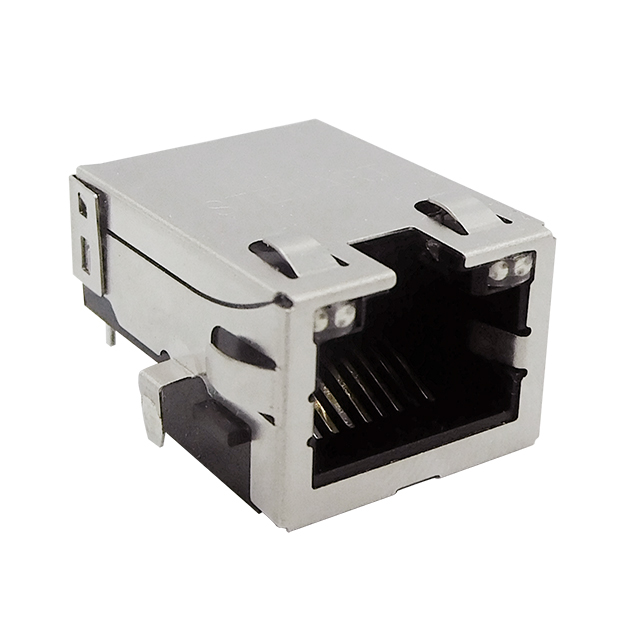

SS-74800-144
ActiveBEL MAGNETIC SOLUTIONS
JACK MID-PLANE YEL/GRN LED 1G
Deep-Dive with AI
Search across all available documentation for this part.
SS-74800-144
ActiveBEL MAGNETIC SOLUTIONS
JACK MID-PLANE YEL/GRN LED 1G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-74800-144 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| LED Color | Yellow - Green |
| Mounting Type | Mid Mount, Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5e |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.11 | |
| 10 | $ 5.52 | |||
| 25 | $ 5.22 | |||
| 40 | $ 5.09 | |||
| 80 | $ 4.84 | |||
| 230 | $ 4.33 | |||
| 900 | $ 3.82 | |||
| 1800 | $ 3.49 | |||
| 2700 | $ 3.39 | |||
Description
General part information
SS-74800 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
