PJ-002AH

Active

CUI Devices

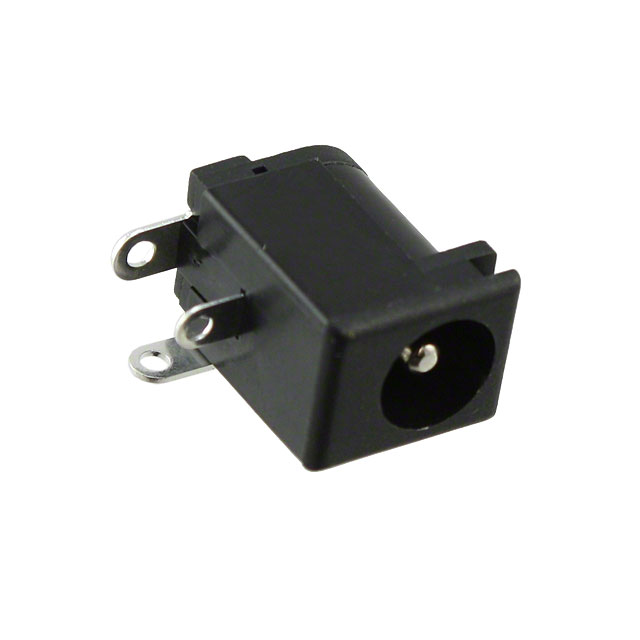

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-002AH

Actual Diameter	2 mm, 6.5 mm
Actual Diameter [diameter]	0.079 in, 0.256 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver, Nickel
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [custom]	9 mm
Mating Length/Depth [custom]	0.354 in
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Shielding	Mating Length/Depth	Mating Length/Depth	Material Flammability Rating	Contact Material	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Contact Material - Plating [custom]	Number of Positions/Contacts	Internal Switch(s)	Mounting Type	Current Rating (Amps)	Connector Type	Voltage - Rated	Housing Material	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Actual Diameter [diameter]	Actual Diameter
CUI Devices PJ-002BH-SMT-TR	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Unshielded	8.9 mm	0.35 in	UL94 V-0	Brass Copper Alloy	Male	-25 °C	85 °C	Solder	Board Guide Solder Retention	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Surface Mount Right Angle	5 A	Jack	24 VDC	Polyamide (PA6T) Nylon 6T
CUI Devices PJ-002AH	2.1 mm 5.5 mm	0.083 in 0.217 "	Black	Unshielded			UL94 V-0	Brass Copper Alloy	Male	-25 °C	85 °C	Solder Eyelet(s)		Nickel Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Through Hole Right Angle	5 A	Jack	24 VDC	Polybutylene Terephthalate (PBT)	9 mm	0.354 in	0.079 in 0.256 in	2 mm 6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
