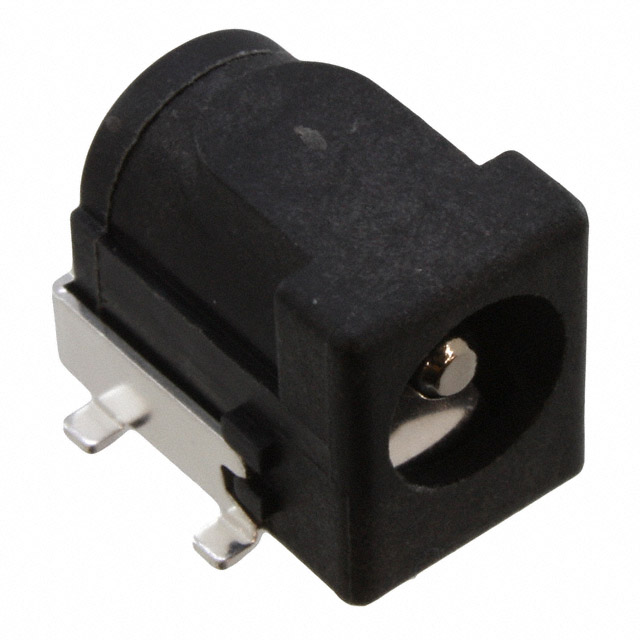

PJ-002BH-SMT-TR
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-002BH-SMT-TR
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-002BH-SMT-TR |
|---|---|
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Features | Solder Retention, Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 8.9 mm |
| Mating Length/Depth | 0.35 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.13 | ||
| 10 | $ 0.96 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.86 | |||
| Tape & Reel (TR) | 350 | $ 0.92 | ||
| 700 | $ 0.83 | |||
| 1050 | $ 0.73 | |||
| 1750 | $ 0.69 | |||
| 2450 | $ 0.66 | |||
| 8750 | $ 0.61 | |||
Description
General part information
PJ-002 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle
