T4110402021-000
ActiveTE Connectivity Raychem Cable Protection

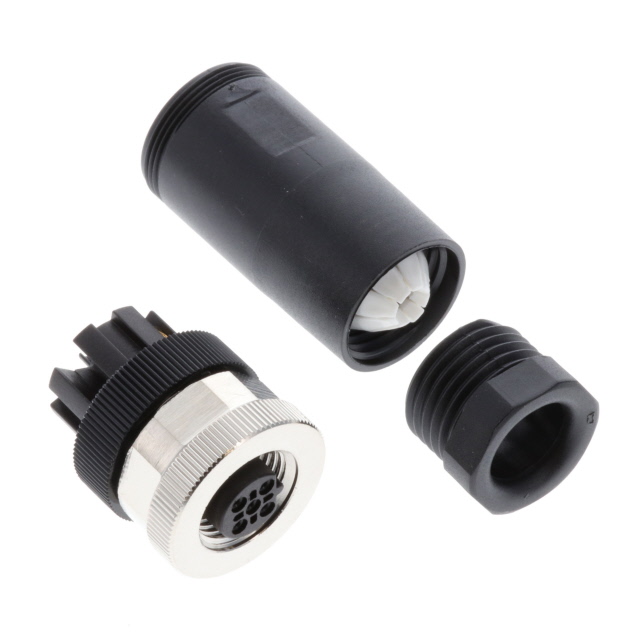

CONN PLUG FMALE 2POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4110402021-000
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG FMALE 2POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4110402021-000 |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Zinc Alloy |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-2 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VDC |
T41104 Series
| Part | Backshell Material, Plating | Applications | Primary Material | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Contact Material | Features | Contact Finish - Mating | Voltage Rating | Shell Size - Insert | Insert Material | Orientation | Current Rating (Amps) | Ingress Protection | Color | Shielding | Mounting Type | Termination | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 2.03 µm | 80 µin | 85 °C | -40 °C | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | Bronze | Backshell Coupling Nut | Silver | 60 VDC | M12-5 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | |||
TE Connectivity Raychem Cable Protection | Brass Nickel | Industrial | Metal | Nickel | 0.076 µm | 3 µin | 85 °C | -40 °C | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | Zinc Alloy | Backshell Coupling Nut | Gold | 60 VDC | M12-5 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Silver | Shielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | |||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 2.03 µm | 80 µin | 85 °C | -40 °C | Brass | Bronze | Backshell Coupling Nut | Silver | 250 VDC | M12-3 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 mm 6 mm | 0.157 in 0.236 in | |||||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 2.03 µm | 80 µin | 85 °C | -40 °C | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | Bronze | Backshell Coupling Nut | Silver | 250 VDC | M12-4 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 | ||
TE Connectivity Raychem Cable Protection | Brass Nickel | Industrial | Metal | Nickel | 0.076 µm | 3 µin | 85 °C | -40 °C | Brass | Zinc Alloy | Backshell Coupling Nut | Gold | 250 VDC | M12-4 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Silver | Shielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 mm 6 mm | 0.157 in 0.236 in | 4 | ||||
TE Connectivity Raychem Cable Protection | Brass Nickel | Industrial | Metal | Nickel | 2.03 µm | 80 µin | 85 °C | -40 °C | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | Bronze | Backshell Coupling Nut | Silver | 250 VDC | M12-4 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Silver | Shielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 | ||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 0.076 µm | 3 µin | 85 °C | -40 °C | Brass | Zinc Alloy | Backshell Coupling Nut | Gold | 60 VDC | M12-5 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 mm 6 mm | 0.157 in 0.236 in | |||||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 0.076 µm | 3 µin | 85 °C | -40 °C | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | Zinc Alloy | Backshell Coupling Nut | Gold | 250 VDC | M12-4 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 | ||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 0.076 µm | 3 µin | 85 °C | -40 °C | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | Zinc Alloy | Backshell Coupling Nut | Gold | 250 VDC | M12-2 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 2 | ||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | Industrial | Metal | Nickel | 0.076 µm | 3 µin | 85 °C | -40 °C | Brass | Bronze | Backshell Coupling Nut | Gold | 250 VDC | M12-2 | Nylon Polyamide (PA) | B | 4 A | IP67 - Dust Tight Waterproof | Black Silver | Unshielded | Free Hanging (In-Line) | Screw | Female Sockets Plug | 4 mm 6 mm | 0.157 in 0.236 in | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.77 | |
| 10 | $ 5.05 | |||
| 100 | $ 4.53 | |||
| 1000 | $ 3.76 | |||
Description
General part information
T41104 Series
2 Position Circular Connector Plug, Female Sockets Screw
