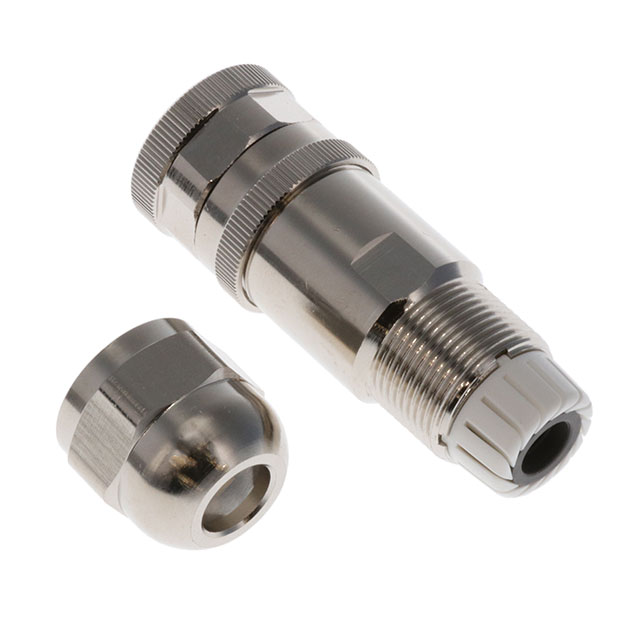

T4110412051-000

Active

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 5POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T4110412051-000

Active

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 5POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4110412051-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Zinc Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Screw
Voltage Rating	60 VDC

T41104 Series

Part	Backshell Material, Plating	Applications	Primary Material	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Contact Material	Features	Contact Finish - Mating	Voltage Rating	Shell Size - Insert	Insert Material	Orientation	Current Rating (Amps)	Ingress Protection	Color	Shielding	Mounting Type	Termination	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions
TE Connectivity Raychem Cable Protection T4110402052-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	2.03 µm	80 µin	85 °C	-40 °C	Brass	8 mm	6 mm	0.315 in	0.236 in	Bronze	Backshell Coupling Nut	Silver	60 VDC	M12-5	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug
TE Connectivity Raychem Cable Protection T4110412051-000	Brass Nickel	Industrial	Metal	Nickel	0.076 µm	3 µin	85 °C	-40 °C	Brass	8 mm	6 mm	0.315 in	0.236 in	Zinc Alloy	Backshell Coupling Nut	Gold	60 VDC	M12-5	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Silver	Shielded	Free Hanging (In-Line)	Screw	Female Sockets Plug
TE Connectivity Raychem Cable Protection T4110401032-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	2.03 µm	80 µin	85 °C	-40 °C	Brass					Bronze	Backshell Coupling Nut	Silver	250 VDC	M12-3	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4110402042-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	2.03 µm	80 µin	85 °C	-40 °C	Brass	8 mm	6 mm	0.315 in	0.236 in	Bronze	Backshell Coupling Nut	Silver	250 VDC	M12-4	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug			4
TE Connectivity Raychem Cable Protection T4110411041-000	Brass Nickel	Industrial	Metal	Nickel	0.076 µm	3 µin	85 °C	-40 °C	Brass					Zinc Alloy	Backshell Coupling Nut	Gold	250 VDC	M12-4	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Silver	Shielded	Free Hanging (In-Line)	Screw	Female Sockets Plug	4 mm 6 mm	0.157 in 0.236 in	4
TE Connectivity Raychem Cable Protection T4110412042-000	Brass Nickel	Industrial	Metal	Nickel	2.03 µm	80 µin	85 °C	-40 °C	Brass	8 mm	6 mm	0.315 in	0.236 in	Bronze	Backshell Coupling Nut	Silver	250 VDC	M12-4	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Silver	Shielded	Free Hanging (In-Line)	Screw	Female Sockets Plug			4
TE Connectivity Raychem Cable Protection T4110401051-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	0.076 µm	3 µin	85 °C	-40 °C	Brass					Zinc Alloy	Backshell Coupling Nut	Gold	60 VDC	M12-5	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4110402041-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	0.076 µm	3 µin	85 °C	-40 °C	Brass	8 mm	6 mm	0.315 in	0.236 in	Zinc Alloy	Backshell Coupling Nut	Gold	250 VDC	M12-4	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug			4
TE Connectivity Raychem Cable Protection T4110402021-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	0.076 µm	3 µin	85 °C	-40 °C	Brass	8 mm	6 mm	0.315 in	0.236 in	Zinc Alloy	Backshell Coupling Nut	Gold	250 VDC	M12-2	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug			2
TE Connectivity Raychem Cable Protection T4110401021-000	Glass Filled Polybutylene Terephthalate (PBT)	Industrial	Metal	Nickel	0.076 µm	3 µin	85 °C	-40 °C	Brass					Bronze	Backshell Coupling Nut	Gold	250 VDC	M12-2	Nylon Polyamide (PA)	B	4 A	IP67 - Dust Tight Waterproof	Black Silver	Unshielded	Free Hanging (In-Line)	Screw	Female Sockets Plug	4 mm 6 mm	0.157 in 0.236 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.95
		10	$ 10.73
		25	$ 9.95
		50	$ 9.41
		100	$ 8.89
		250	$ 8.26
		500	$ 7.81
		1000	$ 7.39

Description

General part information

T41104 Series

5 Position Circular Connector Plug, Female Sockets Screw
