Technical Specifications
Parameters and characteristics for this part
| Specification | 10ETF06 |
|---|---|
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 100 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | TO-220-2 |
| Reverse Recovery Time (trr) | 145 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-220AC |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.2 V |
10ETF06 Series
| Part | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If [Max] | Reverse Recovery Time (trr) | Technology | Supplier Device Package | Voltage - DC Reverse (Vr) (Max) [Max] | Mounting Type | Speed | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay General Semiconductor - Diodes Division | 10 A | 100 µA | 1.2 V | 200 ns | Standard | TO-263AB (D2PAK) | 600 V | Surface Mount | 200 mA 500 ns | 150 °C | -40 °C | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB |
Vishay General Semiconductor - Diodes Division | 10 A | 1.2 V | 200 ns | Standard | TO-220AC | 600 V | Through Hole | 200 mA 500 ns | 150 °C | -40 °C | TO-220-2 | |
Vishay General Semiconductor - Diodes Division | 10 A | 100 µA | 1.2 V | 200 ns | Standard | TO-263AB (D2PAK) | 600 V | Surface Mount | 200 mA 500 ns | 150 °C | -40 °C | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB |
Vishay General Semiconductor - Diodes Division | 10 A | 100 µA | 1.2 V | 200 ns | Standard | TO-263AB (D2PAK) | 600 V | Surface Mount | 200 mA 500 ns | 150 °C | -40 °C | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB |
Vishay General Semiconductor - Diodes Division | 10 A | 100 µA | 1.2 V | 145 ns | Standard | TO-220AC | 600 V | Through Hole | 200 mA 500 ns | 150 °C | -40 °C | TO-220-2 |
Vishay General Semiconductor - Diodes Division | 10 A | 100 µA | 1.2 V | 145 ns | Standard | TO-263AB (D2PAK) | 600 V | Surface Mount | 200 mA 500 ns | 150 °C | -40 °C | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB |
Vishay General Semiconductor - Diodes Division | 10 A | 100 µA | 1.2 V | 200 ns | Standard | TO-220AC | 600 V | Through Hole | 200 mA 500 ns | 150 °C | -40 °C | TO-220-2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10ETF06 Series

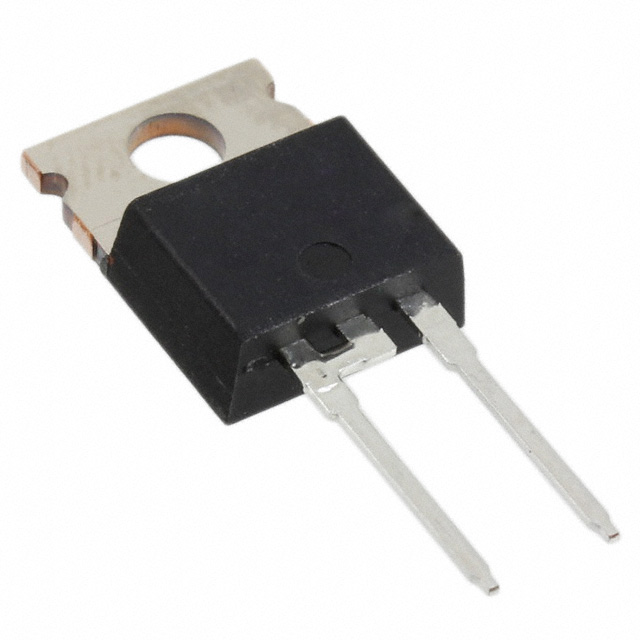

Diode 600 V 10A Through Hole TO-220AC
