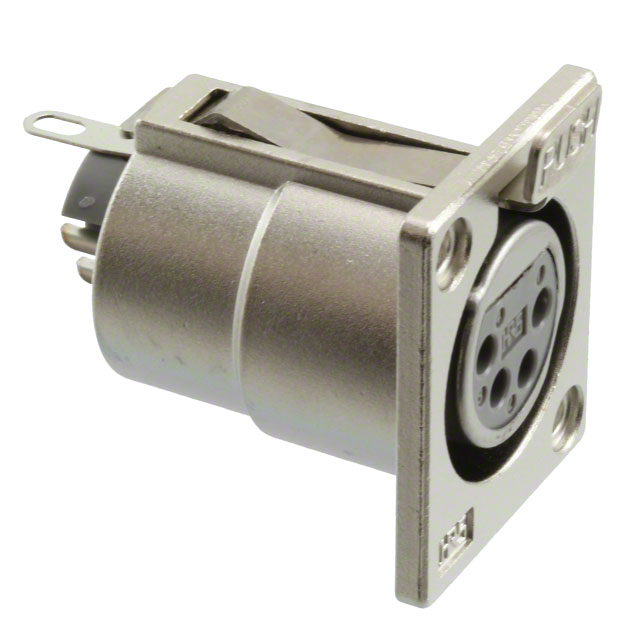

HA16PRK-4S

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 4P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HA16PRK-4S

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum or Zinc Alloy
Shell Size - Insert	16
Shielding	Shielded
Voltage Rating	130 VAC, 180 VDC

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Primary Material	Features	Orientation	Shell Size - Insert	Contact Finish - Mating	Contact Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Insert Material	Voltage Rating	Fastening Type	Color	Shell Finish	Mounting Feature	Shell Material	Material Flammability Rating	Current Rating (Amps)	Number of Positions
Hirose Electric USA, Inc. HA16PRK-3S	78.7 µin	2 µm	Female Sockets Plug	Metal	Ground	Keyed	16	Silver	Phosphor Bronze	Industrial	70 °C	-25 °C	Shielded	Nylon Polyamide (PA)	130 VAC 180 VDC	Latch Lock	Silver	Nickel	Flange	Aluminum Alloy	UL94 V-0	15 A
Hirose Electric USA, Inc. HA16PRK-4S			Female Sockets Plug	Metal	Ground	Keyed	16	Silver	Copper Alloy		70 °C	-25 °C	Shielded		130 VAC 180 VDC	Latch Lock	Silver	Nickel	Flange	Aluminum or Zinc Alloy	UL94 V-0	5 A	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
