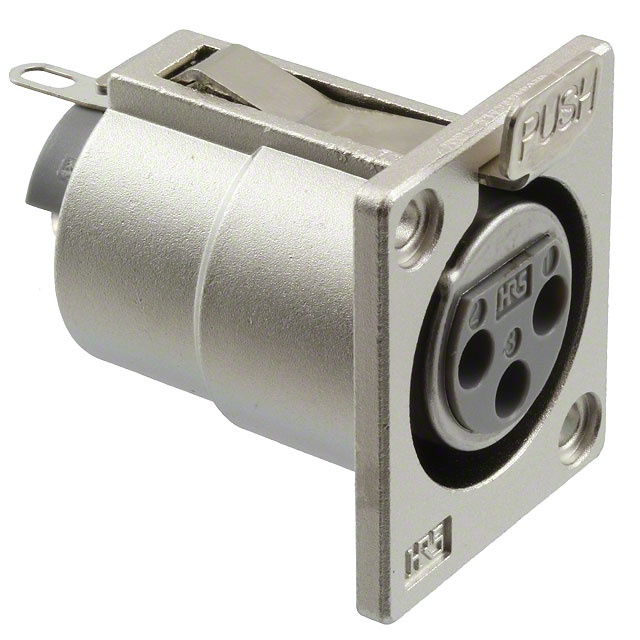

HA16PRK-3S

Obsolete

Hirose Electric USA, Inc.

AUDIO/RCA CONNECTOR, 3 POLE(S), SOLDER LUG TERMINAL, PLUG-RECEPTACLE

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

AUDIO/RCA CONNECTOR, 3 POLE(S), SOLDER LUG TERMINAL, PLUG-RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	HA16PRK-3S

Applications	Industrial
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Shielding	Shielded
Voltage Rating	130 VAC, 180 VDC

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Primary Material	Features	Orientation	Shell Size - Insert	Contact Finish - Mating	Contact Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Insert Material	Voltage Rating	Fastening Type	Color	Shell Finish	Mounting Feature	Shell Material	Material Flammability Rating	Current Rating (Amps)	Number of Positions
Hirose Electric USA, Inc. HA16PRK-3S	78.7 µin	2 µm	Female Sockets Plug	Metal	Ground	Keyed	16	Silver	Phosphor Bronze	Industrial	70 °C	-25 °C	Shielded	Nylon Polyamide (PA)	130 VAC 180 VDC	Latch Lock	Silver	Nickel	Flange	Aluminum Alloy	UL94 V-0	15 A
Hirose Electric USA, Inc. HA16PRK-4S			Female Sockets Plug	Metal	Ground	Keyed	16	Silver	Copper Alloy		70 °C	-25 °C	Shielded		130 VAC 180 VDC	Latch Lock	Silver	Nickel	Flange	Aluminum or Zinc Alloy	UL94 V-0	5 A	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
