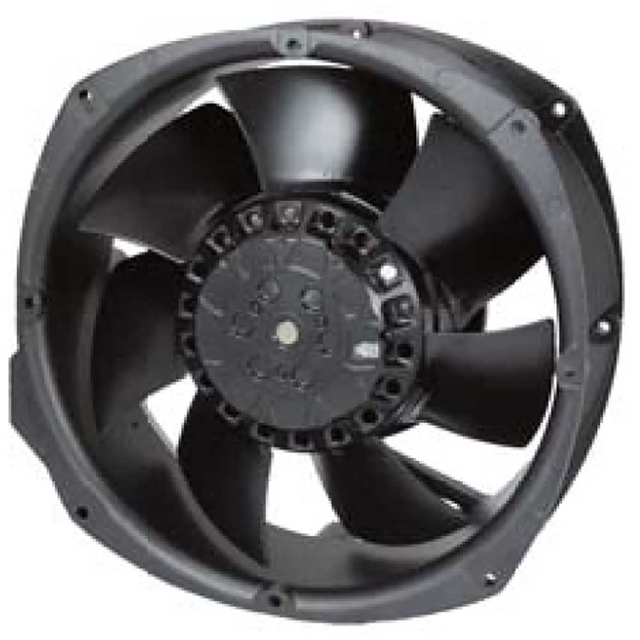

OA200AP-11-1TB1868
ActiveOrion Fans
AC FAN AXIAL BALL BEARING 115V 100V TO 130V 430CFM/485CFM 68.2DB 220 X 70MM HIGH SPEED
Deep-Dive with AI
Search across all available documentation for this part.
OA200AP-11-1TB1868
ActiveOrion Fans
AC FAN AXIAL BALL BEARING 115V 100V TO 130V 430CFM/485CFM 68.2DB 220 X 70MM HIGH SPEED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA200AP-11-1TB1868 |
|---|---|
| Air Flow | 13.58 m³/min |
| Air Flow | 485 CFM |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 68 dB |
| Power (Watts) | 105 W |
| RPM | 3300 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 220 mm |
| Size / Dimension [z] | 200 mm |
| Static Pressure | 231.7 Pa |
| Static Pressure | 0.93 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 2.1 kg |
| Weight | 4.6 lbs |
| Width [y] | 70 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA200AP Series
Fan Tubeaxial 115VAC Rectangular/Rounded - 220mm L x 200mm H Ball 485.0 CFM (13.58m³/min) 2 Terminals
