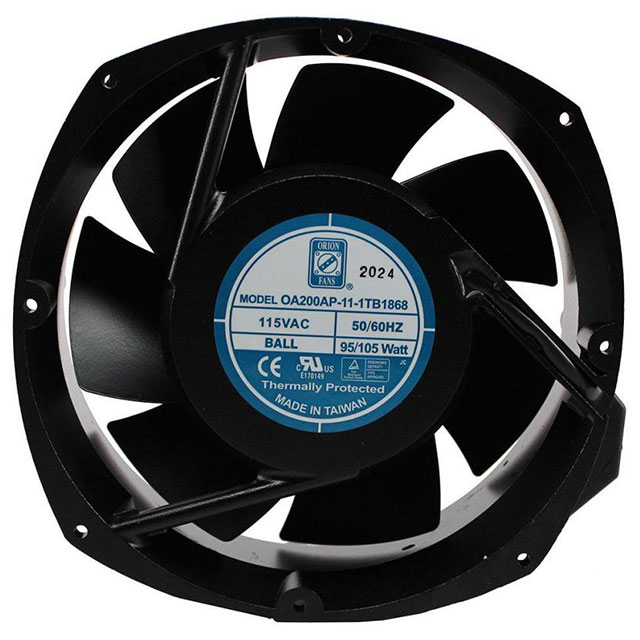

OA200AP-11-1TB1869K

Active

Orion Fans

AC AXIAL FAN, 115V, CIRCULAR, 220 MM, 72 MM, BALL BEARING, 485 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN One Page Summary EN +1

OA200AP-11-1TB1869K

Active

Orion Fans

AC AXIAL FAN, 115V, CIRCULAR, 220 MM, 72 MM, BALL BEARING, 485 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN One Page Summary EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA200AP-11-1TB1869K

Air Flow	13.58 m³/min
Air Flow	485 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP69K
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	68 dB
Power (Watts)	105 W
RPM	3300 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	220 mm
Size / Dimension [z]	200 mm
Static Pressure	231.7 Pa
Static Pressure	0.93 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	2.1 kg
Weight	4.6 lbs
Width [y]	70 mm

OA200AP Series

Part	Approval Agency	Lifetime @ Temp.	Power (Watts)	Ingress Protection	Weight	Weight	Voltage - Rated	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Features	Bearing Type	Material - Frame	Fan Type	Air Flow	Air Flow	Noise	Width [y]	Static Pressure	Static Pressure	Termination	RPM
Orion Fans OA200AP-11-1TB1869K	CE cURus TUV UR	50000 Hrs	105 W	IP69K	2.1 kg	4.6 lbs	115 VAC	Steel	200 mm	Rectangular/Rounded	220 mm	Thermal Overload Protector (TOP)	Ball	Aluminum	Tubeaxial	13.58 m³/min	485 CFM	68 dB	70 mm	231.7 Pa	0.93 in H2O	2 Terminals	3300 RPM
Orion Fans OA200AP-11-1TB1868	CE cURus TUV UR	50000 Hrs	105 W	IP68 - Dust Tight Waterproof	2.1 kg	4.6 lbs	115 VAC	Steel	200 mm	Rectangular/Rounded	220 mm	Thermal Overload Protector (TOP)	Ball	Aluminum	Tubeaxial	13.58 m³/min	485 CFM	68 dB	70 mm	231.7 Pa	0.93 in H2O	2 Terminals	3300 RPM
Orion Fans OA200AP-22-1TB1868	CE cURus TUV UR	50000 Hrs	105 W	IP68 - Dust Tight Waterproof	2.1 kg	4.6 lbs	230 VAC	Steel	200 mm	Rectangular/Rounded	220 mm	Thermal Overload Protector (TOP)	Ball	Aluminum	Tubeaxial	13.58 m³/min	485 CFM	68 dB	70 mm	231.7 Pa	0.93 in H2O	2 Terminals	3300 RPM
Orion Fans OA200AP-11-1WB1868	CE cURus TUV UR	50000 Hrs	105 W	IP68 - Dust Tight Waterproof	2.1 kg	4.6 lbs	115 VAC	Steel	200 mm	Rectangular/Rounded	220 mm	Thermal Overload Protector (TOP)	Ball	Aluminum	Tubeaxial	13.58 m³/min	485 CFM	68 dB	70 mm	231.7 Pa	0.93 in H2O	2 Wire Leads	3300 RPM
Orion Fans OA200AP-22-1TB1869K	CE cURus TUV UR	50000 Hrs	105 W	IP69K	2.1 kg	4.6 lbs	230 VAC	Steel	200 mm	Rectangular/Rounded	220 mm	Thermal Overload Protector (TOP)	Ball	Aluminum	Tubeaxial	13.58 m³/min	485 CFM	68 dB	70 mm	231.7 Pa	0.93 in H2O	2 Terminals	3300 RPM
Orion Fans OA200AP-22-1WB1869K	CE cURus TUV UR	50000 Hrs	105 W	IP69K	2.1 kg	4.6 lbs	230 VAC	Steel	200 mm	Rectangular/Rounded	220 mm	Thermal Overload Protector (TOP)	Ball	Aluminum	Tubeaxial	13.58 m³/min	485 CFM	68 dB	70 mm	231.7 Pa	0.93 in H2O	2 Wire Leads	3300 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 136.40
Newark	Each	5	$ 134.33
		10	$ 130.88
		25	$ 123.99
		50	$ 117.10

Description

General part information

OA200AP Series

Fan Tubeaxial 115VAC Rectangular/Rounded - 220mm L x 200mm H Ball 485.0 CFM (13.58m³/min) 2 Terminals
