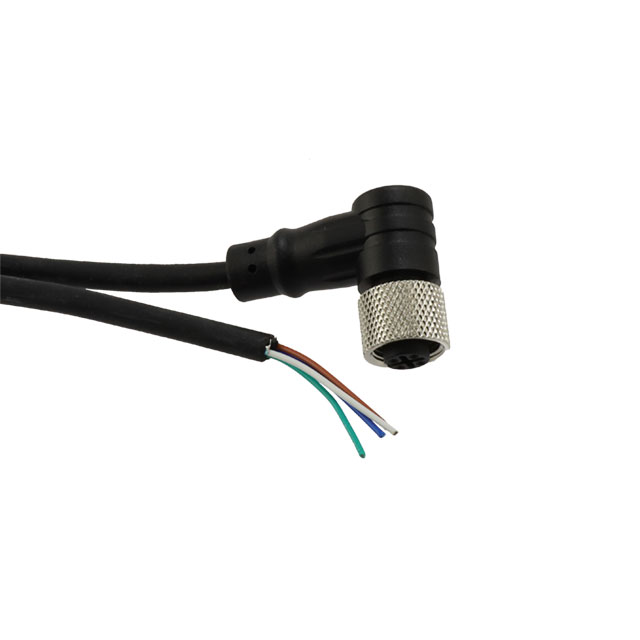

SD-PMA04C-FFTBR-C7A-6FT

Active

Adam Tech

CIRC CBL 4POS PLUG RA TO WIRE 6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

SD-PMA04C-FFTBR-C7A-6FT

Active

Adam Tech

CIRC CBL 4POS PLUG RA TO WIRE 6'

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SD-PMA04C-FFTBR-C7A-6FT

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Round
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	6 ft
Length	1.83 m
Shielding	Unshielded
Usage	Industrial Environments

SD-PMA Series

Part	Assembly Configuration	Shielding	2nd Connector Type	Ingress Protection	Cable Type	1st Connector Orientation [custom]	Length	Length	1st Connector Number of Positions	Usage	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Gender	1st Connector Mounting Type	Primary Material	Orientation	Voltage Rating	Shell Material	Applications	Shell Finish	Contact Finish Thickness - Mating	Mounting Type	Shell Size - Insert	Contact Material	Current Rating (Amps)	Insert Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type
Adam Tech SD-PMA02C-FFTBL-C7A-6FT	Standard	Unshielded	Wire Leads	IP67 - Dust Tight Waterproof	Round	Keyed	6 ft	1.83 m	2	Industrial Environments	All	M12	Plug	Female Sockets	Free Hanging (In-Line)
Adam Tech SD-PMA03A-FFTS3		Unshielded		IPX7 - Waterproof												Metal	A	125 VDC	Brass	Industrial	Nickel	Flash	Free Hanging (In-Line)	M12-3	Brass	5 A	Polybutylene Terephthalate (PBT)	Gold	85 °C	-20 C	Silver	Female Sockets Plug
Adam Tech SD-PMA04C-FFTBR-C7A-6FT	Standard	Unshielded	Wire Leads	IP67 - Dust Tight Waterproof	Round	Keyed	6 ft	1.83 m	4	Industrial Environments	All	M12	Plug Right Angle	Female Sockets	Free Hanging (In-Line)
Adam Tech SD-PMA05C-FFTBL-C7A-6FT	Standard	Unshielded	Wire Leads	IP67 - Dust Tight Waterproof	Round	Keyed	6 ft	1.83 m	5	Industrial Environments	All	M12	Plug	Female Sockets	Free Hanging (In-Line)
Adam Tech SD-PMA05C-FFTBR-C7A-6FT	Standard	Unshielded	Wire Leads	IP67 - Dust Tight Waterproof	Round	Keyed	6 ft	1.83 m	5	Industrial Environments	All	M12	Plug Right Angle	Female Sockets	Free Hanging (In-Line)
Adam Tech SD-PMA06C-FFTBR-C7A-6FT	Standard	Unshielded	Wire Leads	IP67 - Dust Tight Waterproof	Round	Keyed	6 ft	1.83 m	6	Industrial Environments	All	M12	Plug Right Angle	Female Sockets	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 28.94
		10	$ 22.38
