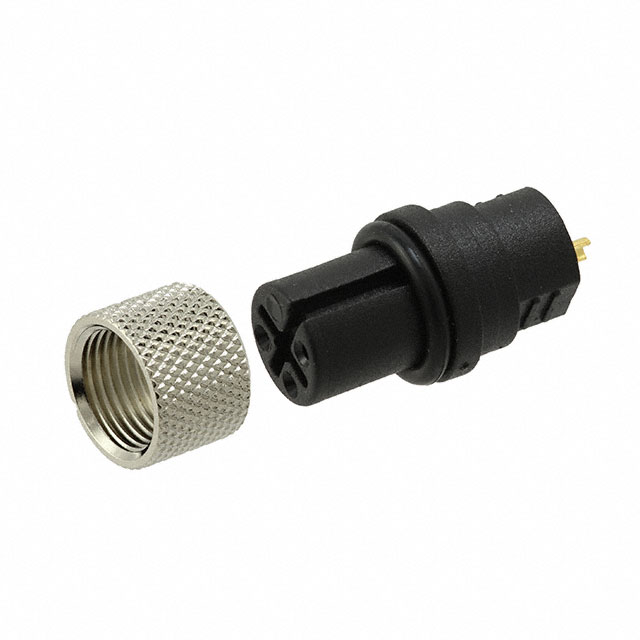

SD-PMA03A-FFTS3
ActiveAdam Tech
CONN PLUG FMALE 3POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
SD-PMA03A-FFTS3
ActiveAdam Tech
CONN PLUG FMALE 3POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-PMA03A-FFTS3 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IPX7 - Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-3 |
| Shielding | Unshielded |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.65 | |
| 10 | $ 6.50 | |||
| 25 | $ 6.09 | |||
| 50 | $ 5.80 | |||
| 100 | $ 5.53 | |||
| 300 | $ 5.11 | |||
| 500 | $ 4.93 | |||
| 1000 | $ 4.70 | |||
Description
General part information
SD-PMA Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
