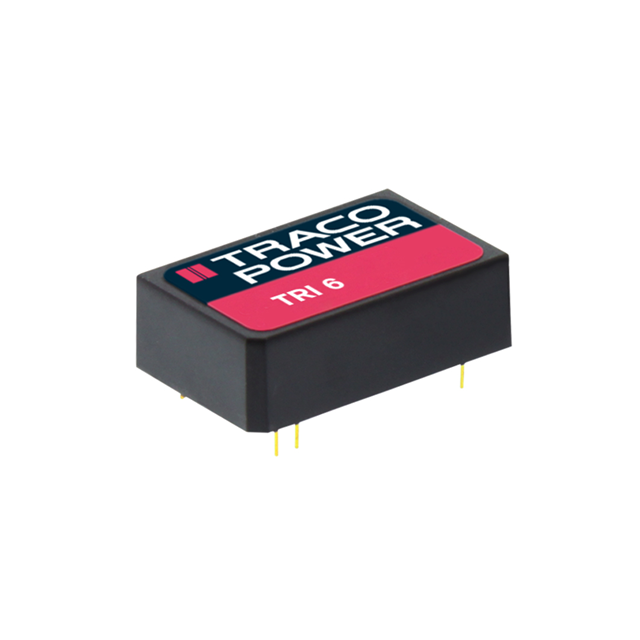

TRI 6-4822

Active

Traco Power

DC DC CONVERTER +/-12V 6W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER +/-12V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Mounting Type	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Number of Outputs	Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Current - Output (Max) [Max]
Traco Power TRI 6-2422	9 kV	Through Hole	-12 V	-40 °C	203 °F	6 W	2	Isolated Module	ITE (Commercial)	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	CB cURus	36 V	18 V	86 %	24-DIP Module 6 Leads	250 mA	250 mA	12 V
Traco Power TRI 6-2412	9 kV	Through Hole		-40 °C	203 °F	6 W	1	Isolated Module	ITE (Commercial)	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	CB cURus	36 V	18 V	86 %	24-DIP Module 5 Leads			12 V	500 mA
Traco Power TRI 6-4822	9 kV	Through Hole	-12 V	-40 °C	203 °F	6 W	2	Isolated Module	ITE (Commercial)	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	CB cURus	75 V	36 V	87 %	24-DIP Module 6 Leads	250 mA	250 mA	12 V
Traco Power TRI 6-1223	9 kV	Through Hole	-15 V	-40 °C	203 °F	6 W	2	Isolated Module	ITE (Commercial)	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	CB cURus	18 V	9 V	87 %	24-DIP Module 6 Leads			15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 49.30

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 36V - 75V Input
