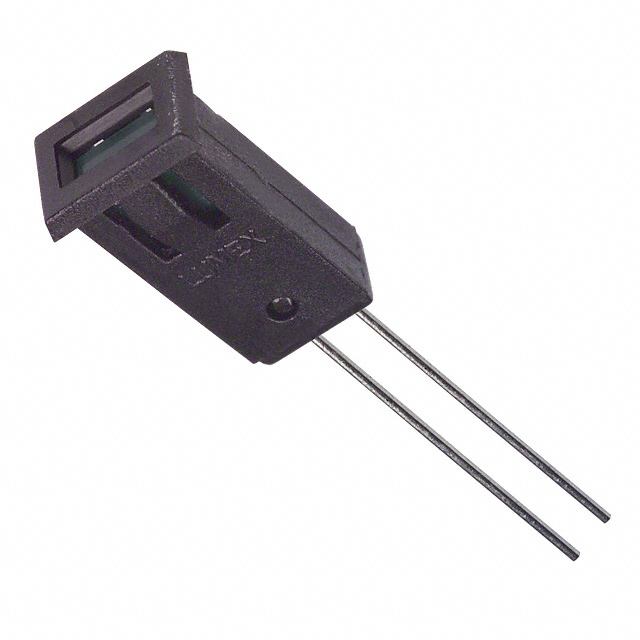

SSI-LXMP059GD
ActiveLumex Opto/Components Inc.
LED 2X5MM GREEN PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXMP059GD
ActiveLumex Opto/Components Inc.
LED 2X5MM GREEN PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXMP059GD |
|---|---|
| Current | 25 mA |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [x] | 4.2 mm |
| Lens Size [y] | 1.83 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions [x] | 0.26 " |
| Panel Cutout Dimensions [x] | 6.6 mm |
| Panel Cutout Dimensions [y] | 0.18 " |
| Panel Cutout Dimensions [y] | 4.57 mm |
| Panel Cutout Shape | Rectangle |
| Type | LED |
| Viewing Angle | 110 ° |
| Voltage | 2.2 V |
| Wavelength - Peak | 565 nm |
SSI-LXMP059 Series
| Part | Wavelength - Peak | Millicandela Rating | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage | Lens Size [y] | Lens Size [x] | Lens Transparency | Viewing Angle | Lens Color | Lamp Color | Panel Cutout Shape | Lens Style | Type | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | 565 nm | 10 mcd | 0.26 " | 0.18 " | 6.6 mm | 4.57 mm | 2.2 V | 1.83 mm | 4.2 mm | Diffused | 110 ° | Green | Green | Rectangle | Rectangle with Flat Top | LED | 25 mA |
Lumex Opto/Components Inc. | 50 mcd | 0.26 " | 0.18 " | 6.6 mm | 4.57 mm | 3.5 V | 1.83 mm | 4.19 mm | Diffused | 110 ° | Blue | Blue | Rectangle | Rectangle with Flat Top | LED | ||
Lumex Opto/Components Inc. | 660 nm | 25 mcd | 0.26 " | 0.18 " | 6.6 mm | 4.57 mm | 1.7 V | 1.83 mm | 4.2 mm | Diffused | 110 ° | Red | Red | Rectangle | Rectangle with Flat Top | LED | 30 mA |
Lumex Opto/Components Inc. | 635 nm | 10 mcd | 0.26 " | 0.18 " | 6.6 mm | 4.57 mm | 2 V | 1.83 mm | 4.2 mm | Diffused | 110 ° | Red | Red | Rectangle | Rectangle with Flat Top | LED | 30 mA |
Lumex Opto/Components Inc. | 565 nm | 10 mcd | 0.26 " | 0.18 " | 6.6 mm | 4.57 mm | 2.2 V | 1.83 mm | 4.2 mm | Diffused | 110 ° | Green | Green | Rectangle | Rectangle with Flat Top | LED | 25 mA |
Lumex Opto/Components Inc. | 635 nm | 10 mcd | 0.26 " | 0.18 " | 6.6 mm | 4.57 mm | 2 V | 1.83 mm | 4.2 mm | Diffused | 110 ° | Red | Red | Rectangle | Rectangle with Flat Top | LED | 30 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.06 | |
| 10 | $ 0.67 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| 2000 | $ 0.36 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
| 25000 | $ 0.33 | |||
Description
General part information
SSI-LXMP059 Series
LED Panel Indicator Green Diffused 110° 2.2V 25mA
Documents
Technical documentation and resources
No documents available
