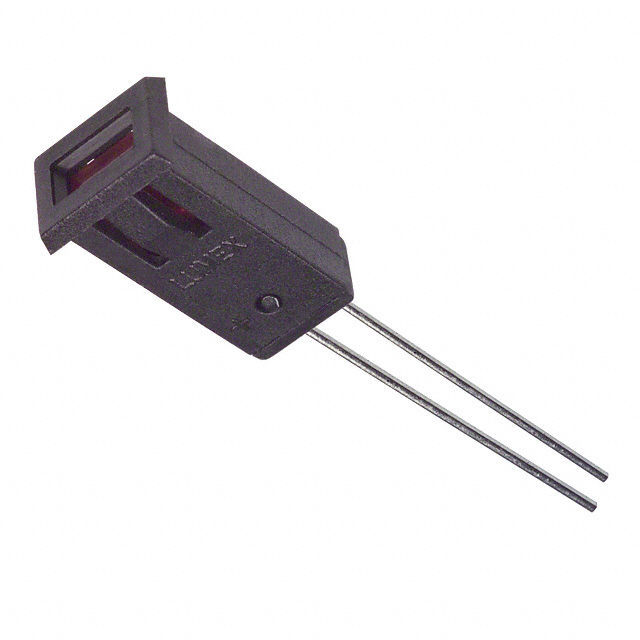

SSI-LXMP059SRD

Active

Lumex Opto/Components Inc.

LED 2X5MM SUPER RED PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 2X5MM SUPER RED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Peak	Millicandela Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage	Lens Size [y]	Lens Size [x]	Lens Transparency	Viewing Angle	Lens Color	Lamp Color	Panel Cutout Shape	Lens Style	Type	Current
Lumex Opto/Components Inc. SSI-LXMP059GD-150	565 nm	10 mcd	0.26 "	0.18 "	6.6 mm	4.57 mm	2.2 V	1.83 mm	4.2 mm	Diffused	110 °	Green	Green	Rectangle	Rectangle with Flat Top	LED	25 mA
Lumex Opto/Components Inc. SSI-LXMP059USBD150		50 mcd	0.26 "	0.18 "	6.6 mm	4.57 mm	3.5 V	1.83 mm	4.19 mm	Diffused	110 °	Blue	Blue	Rectangle	Rectangle with Flat Top	LED
Lumex Opto/Components Inc. SSI-LXMP059SRD	660 nm	25 mcd	0.26 "	0.18 "	6.6 mm	4.57 mm	1.7 V	1.83 mm	4.2 mm	Diffused	110 °	Red	Red	Rectangle	Rectangle with Flat Top	LED	30 mA
Lumex Opto/Components Inc. SSI-LXMP059ID	635 nm	10 mcd	0.26 "	0.18 "	6.6 mm	4.57 mm	2 V	1.83 mm	4.2 mm	Diffused	110 °	Red	Red	Rectangle	Rectangle with Flat Top	LED	30 mA
Lumex Opto/Components Inc. SSI-LXMP059GD	565 nm	10 mcd	0.26 "	0.18 "	6.6 mm	4.57 mm	2.2 V	1.83 mm	4.2 mm	Diffused	110 °	Green	Green	Rectangle	Rectangle with Flat Top	LED	25 mA
Lumex Opto/Components Inc. SSI-LXMP059ID-150	635 nm	10 mcd	0.26 "	0.18 "	6.6 mm	4.57 mm	2 V	1.83 mm	4.2 mm	Diffused	110 °	Red	Red	Rectangle	Rectangle with Flat Top	LED	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 110° 1.7V 30mA

Technical documentation and resources

No documents available
