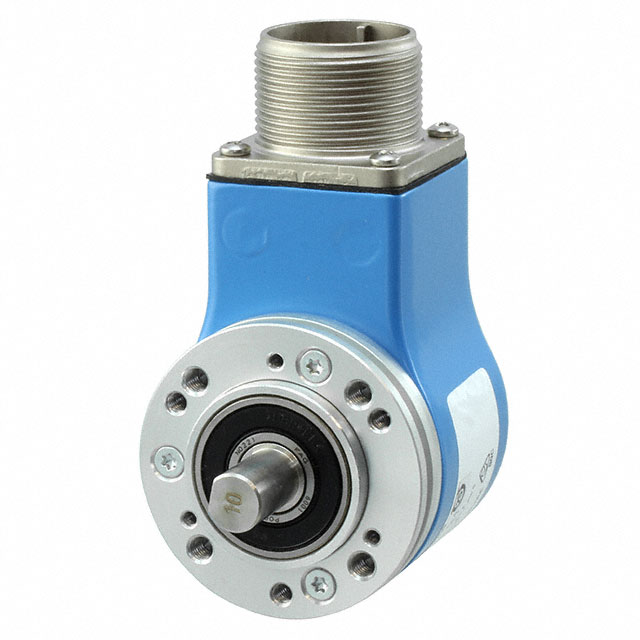

1068828

Active

SICK, Inc.

ROTARY ENCODR INCREMENT 1000PPR

Search across all available documentation for this part.

Active

SICK, Inc.

ROTARY ENCODR INCREMENT 1000PPR

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Pulses per Revolution	Rotational Life (Cycles Min)	Encoder Type	Actuator Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Mounting Type	Orientation
SICK, Inc. 1094820	Connector	5000	3.6B	Incremental	Shaft	30 VDC	8 V	Quadrature (Incremental)	Servo Mount	User Selectable
SICK, Inc. 1094807	Connector	100	3.6B	Incremental	Shaft	30 VDC	8 V	Quadrature (Incremental)	Servo Mount	User Selectable
SICK, Inc. 1094816	Connector	1000	3.6B	Incremental	Shaft	30 VDC	8 V	Quadrature (Incremental)	Servo Mount	User Selectable
SICK, Inc. DFS20A-A2BAC000300	Connector	100	3.6B	Incremental	Shaft	30 VDC	8 V	Quadrature (Incremental)	Servo Mount	User Selectable
SICK, Inc. 1074804	Connector	65536		Incremental	Shaft	30 VDC	4.75 V		Chassis Mount	User Selectable
SICK, Inc. 1068937	Connector	1000		Incremental	Shaft	30 VDC	8 V		Chassis Mount	User Selectable
SICK, Inc. 1068828	Connector	1000		Incremental	Shaft	5.5 V	4.5 V		Servo Mount	User Selectable
SICK, Inc. 1094818	Connector	2048	3.6B	Incremental	Shaft	30 VDC	8 V	Quadrature (Incremental)	Servo Mount	User Selectable
SICK, Inc. 1094819	Connector	2500	3.6B	Incremental	Shaft	30 VDC	8 V	Quadrature (Incremental)	Servo Mount	User Selectable
SICK, Inc. 1066234	Connector	1024		Incremental	3/8" Dia Flatted End	5.5 V	4.5 V		Chassis Mount	User Selectable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODR INCREMENT 1000PPR

Technical documentation and resources
