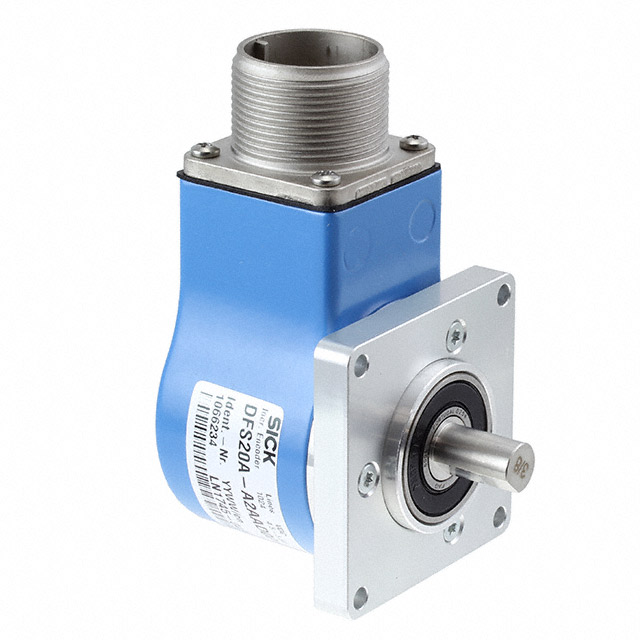

1074804
ActiveSICK, Inc.
ROTARY ENCODR INCREMENT 65536PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1074804
ActiveSICK, Inc.
ROTARY ENCODR INCREMENT 65536PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1074804 |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Pulses per Revolution | 65536 |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4.75 V |
DFS20A Series
| Part | Termination Style | Pulses per Revolution | Rotational Life (Cycles Min) | Encoder Type | Detent | Actuator Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type | Mounting Type | Orientation | Built in Switch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. | Connector | 5000 | 3.6B | Incremental | Shaft | 30 VDC | 8 V | Quadrature (Incremental) | Servo Mount | User Selectable | ||
SICK, Inc. | Connector | 100 | 3.6B | Incremental | Shaft | 30 VDC | 8 V | Quadrature (Incremental) | Servo Mount | User Selectable | ||
SICK, Inc. | Connector | 1000 | 3.6B | Incremental | Shaft | 30 VDC | 8 V | Quadrature (Incremental) | Servo Mount | User Selectable | ||
SICK, Inc. | Connector | 100 | 3.6B | Incremental | Shaft | 30 VDC | 8 V | Quadrature (Incremental) | Servo Mount | User Selectable | ||
SICK, Inc. | Connector | 65536 | Incremental | Shaft | 30 VDC | 4.75 V | Chassis Mount | User Selectable | ||||
SICK, Inc. | Connector | 1000 | Incremental | Shaft | 30 VDC | 8 V | Chassis Mount | User Selectable | ||||
SICK, Inc. | Connector | 1000 | Incremental | Shaft | 5.5 V | 4.5 V | Servo Mount | User Selectable | ||||
SICK, Inc. | Connector | 2048 | 3.6B | Incremental | Shaft | 30 VDC | 8 V | Quadrature (Incremental) | Servo Mount | User Selectable | ||
SICK, Inc. | Connector | 2500 | 3.6B | Incremental | Shaft | 30 VDC | 8 V | Quadrature (Incremental) | Servo Mount | User Selectable | ||
SICK, Inc. | Connector | 1024 | Incremental | 3/8" Dia Flatted End | 5.5 V | 4.5 V | Chassis Mount | User Selectable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1211.13 | |
| 5 | $ 1137.73 | |||
Description
General part information
DFS20A Series
ROTARY ENCODR INCREMENT 65536PPR
