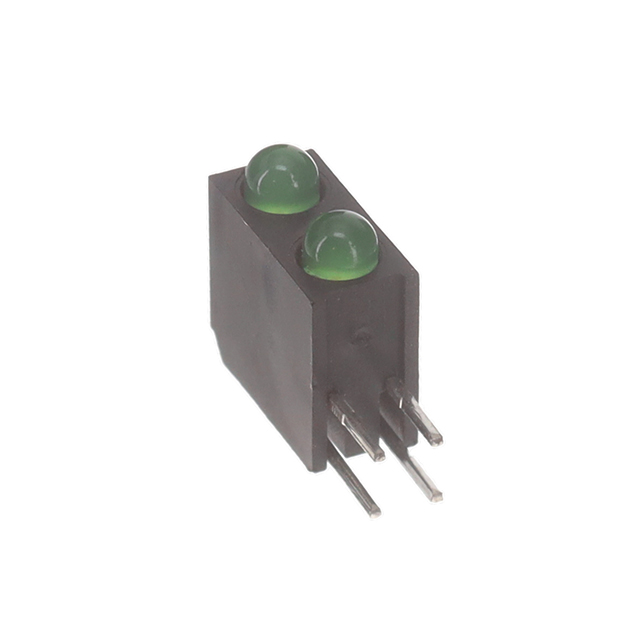

H201CGDL

Active

Bivar Inc.

MULTI-ELEMENT LED LIGHT SOURCE,GREEN,RIGHT ANGLE

Search across all available documentation for this part.

Active

Bivar Inc.

MULTI-ELEMENT LED LIGHT SOURCE,GREEN,RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Part	Color	Lens Type	Millicandela Rating	Lens Size	Lens Size	Current [custom]	Current [custom]	Wavelength - Peak [custom]	Lens Style	Viewing Angle [custom]	Voltage Rating	Configuration	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Current	Viewing Angle	Current [custom]	Current	Millicandela Rating [custom]	Mounting Type
Bivar Inc. H201CAGD	Amber Green	Diffused	25 mcd 25 mcd	3 mm	T-1	20 mA	20 mA	568 nm 605 nm	Round with Domed Top	40 °	2 V 2.1 V	2 High
Bivar Inc. H201CRAD	Amber (x 1) Red (x 1)	Diffused		3 mm	T-1				Round with Domed Top	40 °	2 V 2.1 V	2 High	605 nm 700 nm	25 mcd	2 mcd	20mA Amber 20mA Red
Bivar Inc. H201CGD	Green (x 2)	Diffused	25 mcd	3 mm	T-1				Round with Domed Top	40 °	2.1 V	2 High	568 nm
Bivar Inc. H201CBC	Green (x 1) Red (x 1)	Diffused White	30 mcd	3 mm	T-1		30 mA		Round with Domed Top		2 V 2.2 V	2 High	568 nm 635 nm				45 °	30 mA
Bivar Inc. H201CGDL	Green (x 2)	Diffused	2 mcd	3 mm	T-1				Round with Domed Top	40 °	2.1 V	2 High	568 nm						2 mA
Bivar Inc. H201CBWD	Blue (x 2)	Diffused	10 mcd	3 mm	T-1				Round with Domed Top	40 °	4 V	2 High	430 nm
Bivar Inc. H201CGHD	Green (x 1) Red (x 1)	Diffused		3 mm	T-1				Round with Domed Top	40 °	2 V 2.1 V	2 High	568 nm 625 nm		30 mcd				20 mA 20 mA	25 mcd
Bivar Inc. H201CGYDL	Green Yellow			3 mm	T-1				Round with Domed Top		1.9 V 1.9 V	2 High							2 mA		Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused 2.1V 2mA Round with Domed Top 3mm, T-1
