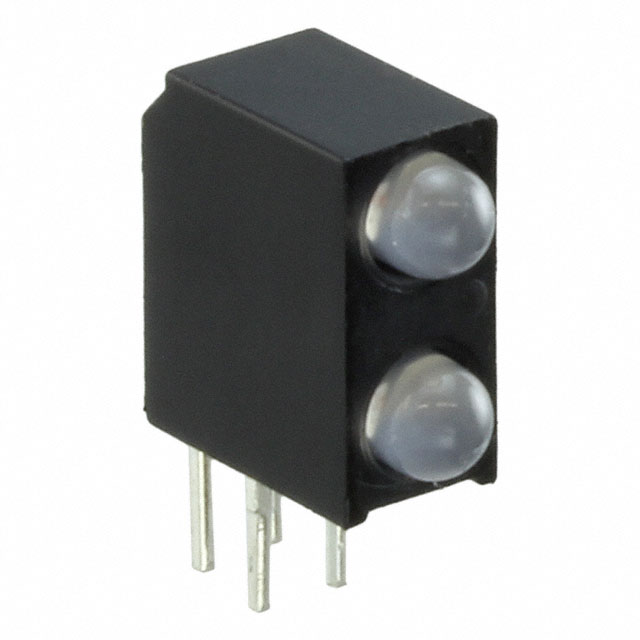

H201CBC

Active

Bivar Inc.

MULTI-ELEMENT LED LIGHT SOURCE,GREEN+ORANGE-RED,RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H201CBC

Active

Bivar Inc.

MULTI-ELEMENT LED LIGHT SOURCE,GREEN+ORANGE-RED,RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H201CBC

Color	Red (x 1), Green (x 1)
Configuration	2 High
Current [custom]	30 mA
Current [custom]	30 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Diffused, White
Millicandela Rating	30 mcd
Viewing Angle	45 °
Voltage Rating	2.2 V, 2 V
Wavelength - Peak	635 nm, 568 nm

H201 Series

Part	Color	Lens Type	Millicandela Rating	Lens Size	Lens Size	Current [custom]	Current [custom]	Wavelength - Peak [custom]	Lens Style	Viewing Angle [custom]	Voltage Rating	Configuration	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Current	Viewing Angle	Current [custom]	Current	Millicandela Rating [custom]	Mounting Type
Bivar Inc. H201CAGD	Amber Green	Diffused	25 mcd 25 mcd	3 mm	T-1	20 mA	20 mA	568 nm 605 nm	Round with Domed Top	40 °	2 V 2.1 V	2 High
Bivar Inc. H201CRAD	Amber (x 1) Red (x 1)	Diffused		3 mm	T-1				Round with Domed Top	40 °	2 V 2.1 V	2 High	605 nm 700 nm	25 mcd	2 mcd	20mA Amber 20mA Red
Bivar Inc. H201CGD	Green (x 2)	Diffused	25 mcd	3 mm	T-1				Round with Domed Top	40 °	2.1 V	2 High	568 nm
Bivar Inc. H201CBC	Green (x 1) Red (x 1)	Diffused White	30 mcd	3 mm	T-1		30 mA		Round with Domed Top		2 V 2.2 V	2 High	568 nm 635 nm				45 °	30 mA
Bivar Inc. H201CGDL	Green (x 2)	Diffused	2 mcd	3 mm	T-1				Round with Domed Top	40 °	2.1 V	2 High	568 nm						2 mA
Bivar Inc. H201CBWD	Blue (x 2)	Diffused	10 mcd	3 mm	T-1				Round with Domed Top	40 °	4 V	2 High	430 nm
Bivar Inc. H201CGHD	Green (x 1) Red (x 1)	Diffused		3 mm	T-1				Round with Domed Top	40 °	2 V 2.1 V	2 High	568 nm 625 nm		30 mcd				20 mA 20 mA	25 mcd
Bivar Inc. H201CGYDL	Green Yellow			3 mm	T-1				Round with Domed Top		1.9 V 1.9 V	2 High							2 mA		Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.73
		10	$ 1.10
		100	$ 0.81
		500	$ 0.75
		1000	$ 0.61
		2000	$ 0.58
		4900	$ 0.57
		9800	$ 0.56
Newark	Each	100	$ 0.99
		500	$ 0.87
		1000	$ 0.76
		2500	$ 0.62
		10000	$ 0.60

Description

General part information

H201 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, White 2.2V Green, 2V Red 30mA Green, 30mA Red Round with Domed Top 3mm, T-1
