Technical Specifications
Parameters and characteristics for this part

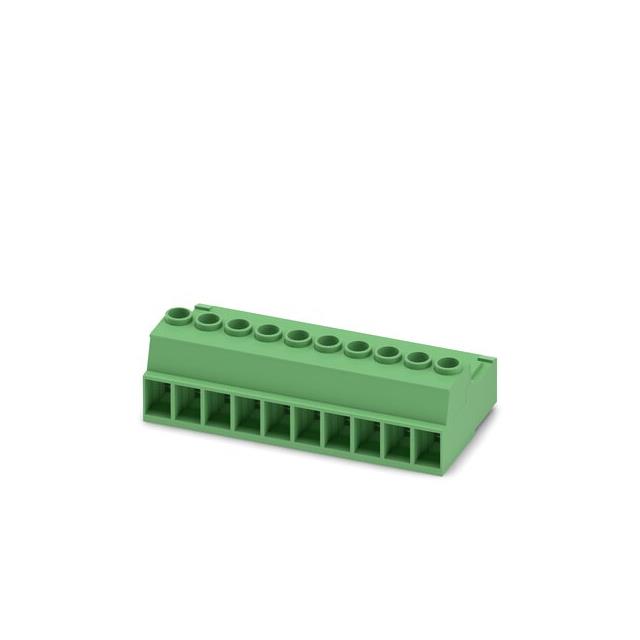

| Specification | 1709128 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 41 A |
| Current - UL | 41 A |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height [z] | 0.902 " |
| Insulation Height [z] | 22.9 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Pitch [x] | 0.3 in |
| Pitch [x] | 7.62 mm |
| Positions Per Level | 10 |
| Screw Size | M3 |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw [Max] | 7.1 Lb-In |
| Torque - Screw [Max] | 0.8 Nm |
| Torque - Screw [Min] | 0.7 Nm |
| Torque - Screw [Min] | 6.2 Lb-In |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG |
| Wire Gauge or Range - mm˛ [Max] | 10 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.2 mm˛ |
| Wire Strip Length | 10 mm |
IPC Series
Pluggable Terminal Blocks 4 Pos 10.16mm pitch Thru Hole Invert Hdr
| Part | Wire Strip Length | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Features | Number of Positions | Pitch [x] | Pitch [x] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Max] | Contact Mating Finish | Insulation Height | Insulation Height | Material Flammability Rating | Housing Material | Screw Size | Current - UL | Current - IEC | Voltage - IEC | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Number of Levels | Color | Mounting Type | Positions Per Level | Termination Style | Insulation Height [z] | Insulation Height [z] | Type | Header Orientation | Contact Tail Length | Contact Tail Length | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | 12 mm | 20 AWG | 6 AWG | Mating Flange | 2 | 10.16 mm | 0.4 in | 15 Lb-In | 1.7 Nm | 1.8 Nm | 15.9 Lb-In | Silver | 27.8 mm | 1.094 " | UL94 V-0 | Polyamide (PA) Nylon | M4 | 55 A | 76 A | 1 kV | 0.75 mm˛ | 16 mm˛ | 1 | Green | Free Hanging (In-Line) | 2 | Screw - Rising Cage Clamp | ||||||||
Phoenix Contact | 10 mm | 24 AWG | 8 AWG | 10 | 7.62 mm | 0.3 in | 6.2 Lb-In | 0.7 Nm | 0.8 Nm | 7.1 Lb-In | Tin | UL94 V-0 | Polyamide (PA) Nylon | M3 | 41 A | 41 A | 1 kV | 0.2 mm˛ | 10 mm˛ | 1 | Green | Free Hanging (In-Line) | 10 | Screw - Rising Cage Clamp | 0.902 " | 22.9 mm | |||||||||
Phoenix Contact | Mating and Mounting Flange | 15 mm | 0.591 in | Silver | 28.5 mm | 1.122 in | UL94 V-0 | Polybutylene Terephthalate (PBT) | 115 A | 125 A | 1 kV | 1 | Green | Through Hole | 3 | Solder | Header Blade Sockets | 90° Right Angle | 4.6 mm | 0.181 in | |||||||||||||||
Phoenix Contact | 10 mm | 24 AWG | 8 AWG | Mating Flange | 4 | 7.62 mm | 0.3 in | 6.2 Lb-In | 0.7 Nm | 0.8 Nm | 7.1 Lb-In | Tin | UL94 V-0 | Polyamide (PA) Nylon | M3 | 41 A | 41 A | 1 kV | 1 | Green | Free Hanging (In-Line) | 4 | Screw - Rising Cage Clamp | 0.902 " | 22.9 mm | 10 mm² | 0.2 mm² |
