1709173

Active

Phoenix Contact

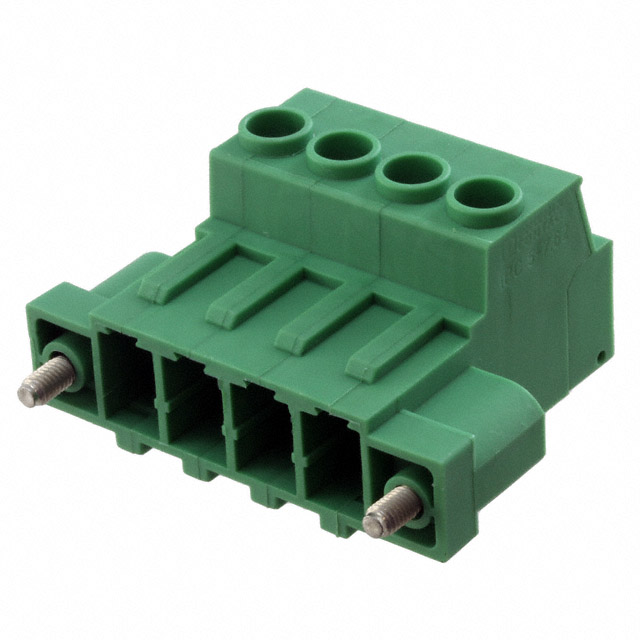

PLUGGABLE TERMINAL BLOCKS 4 POS 7.62MM INVERT PLUG 24-10AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1709173

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 4 POS 7.62MM INVERT PLUG 24-10AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1709173

Color	Green
Contact Mating Finish	Tin
Current - IEC	41 A
Current - UL	41 A
Features	Mating Flange
Housing Material	Polyamide (PA), Nylon
Insulation Height [z]	0.902 "
Insulation Height [z]	22.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	4
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	7.1 Lb-In
Torque - Screw [Max]	0.8 Nm
Torque - Screw [Min]	0.7 Nm
Torque - Screw [Min]	6.2 Lb-In
Voltage - IEC	1 kV
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	10 mm

IPC Series

Pluggable Terminal Blocks 4 Pos 10.16mm pitch Thru Hole Invert Hdr

Part	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Number of Positions	Pitch [x]	Pitch [x]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Max]	Contact Mating Finish	Insulation Height	Insulation Height	Material Flammability Rating	Housing Material	Screw Size	Current - UL	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Levels	Color	Mounting Type	Positions Per Level	Termination Style	Insulation Height [z]	Insulation Height [z]	Type	Header Orientation	Contact Tail Length	Contact Tail Length	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]
Phoenix Contact 1975817	12 mm	20 AWG	6 AWG	Mating Flange	2	10.16 mm	0.4 in	15 Lb-In	1.7 Nm	1.8 Nm	15.9 Lb-In	Silver	27.8 mm	1.094 "	UL94 V-0	Polyamide (PA) Nylon	M4	55 A	76 A	1 kV	0.75 mm˛	16 mm˛	1	Green	Free Hanging (In-Line)	2	Screw - Rising Cage Clamp
Phoenix Contact 1709128	10 mm	24 AWG	8 AWG		10	7.62 mm	0.3 in	6.2 Lb-In	0.7 Nm	0.8 Nm	7.1 Lb-In	Tin			UL94 V-0	Polyamide (PA) Nylon	M3	41 A	41 A	1 kV	0.2 mm˛	10 mm˛	1	Green	Free Hanging (In-Line)	10	Screw - Rising Cage Clamp	0.902 "	22.9 mm
Phoenix Contact 1784923				Mating and Mounting Flange		15 mm	0.591 in					Silver	28.5 mm	1.122 in	UL94 V-0	Polybutylene Terephthalate (PBT)		115 A	125 A	1 kV			1	Green	Through Hole	3	Solder			Header Blade Sockets	90° Right Angle	4.6 mm	0.181 in
Phoenix Contact 1709173	10 mm	24 AWG	8 AWG	Mating Flange	4	7.62 mm	0.3 in	6.2 Lb-In	0.7 Nm	0.8 Nm	7.1 Lb-In	Tin			UL94 V-0	Polyamide (PA) Nylon	M3	41 A	41 A	1 kV			1	Green	Free Hanging (In-Line)	4	Screw - Rising Cage Clamp	0.902 "	22.9 mm					10 mm²	0.2 mm²
