WR9QA3200USBNMEDR6W

Active

GlobTek, Inc.

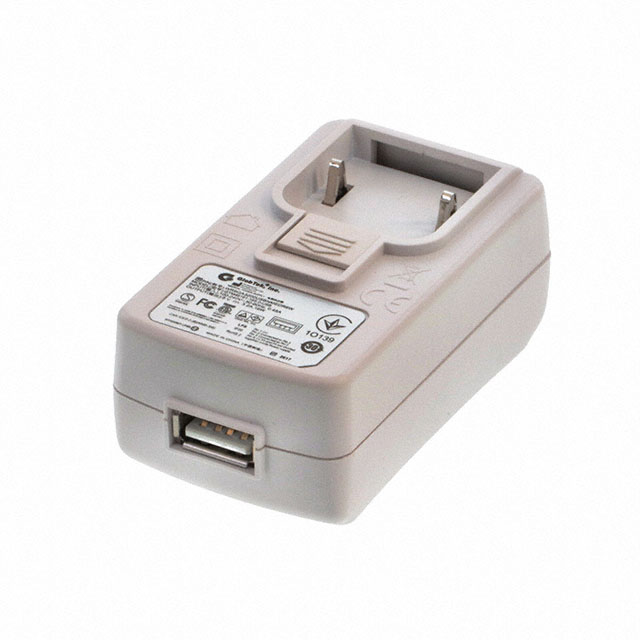

AC/DC WALL MOUNT ADAPTER 5V 16W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QA3200USBNMEDR6W

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 16W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QA3200USBNMEDR6W

Applications	ITE (Commercial), Medical
Approval Agency	S-Mark, CB, LPS, EAC, CCC, CE, ETL, UL, PSE, UKRSepro, FCC, RCM
Current - Output (Max) [Max]	3.2 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	16 W
Region Utilized	International
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71 mm
Size / Dimension [y]	1.61 in
Size / Dimension [y]	41 mm
Size / Dimension [z]	31.5 mm
Size / Dimension [z]	1.24 in
Standard Number	60601-1-2, 60601-1-11, 62368-1, 1310, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

WR9QA3200 Series

Part	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Form	Region Utilized	Input Connector	Applications	Polarization	Efficiency	Voltage - Output	Standard Number	Operating Temperature [Max]	Cord Length	Cord Length	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Output Connector	Output Connector [diameter]	Output Connector [z]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
GlobTek, Inc. WR9QA3200CCPNA-N(R6B	3.2 A	1.71 in	1.34 in	2.91 "	43.5 mm	34 mm	74 mm	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI	Wall Mount (Class II)	International	Multi-Blade	ITE (Commercial)	Positive Center	Level VI	5 V	60950-1 62368-1	40 °C	1.2 m	47.2 in	75 mW	90 VAC	264 VAC	Multi-Blade (Sold Separately)	Barrel Plug	2.1 mm 5.5 mm	11 mm	16 W
GlobTek, Inc. WR9QA3200USBNMEDR6B	3.2 A				1.61 in	1.24 in	2.8 in	CB CCC CE EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL	Wall Mount (Class II)	International	Multi-Blade	ITE (Commercial) Medical		CoC Tier 2 Level VI	5 V	1310 60601-1-11 60601-1-2 60950-1 62368-1	40 °C			75 mW	90 VAC	264 VAC	Multi-Blade (Sold Separately)				16 W	31.5 mm	71 mm	41 mm
GlobTek, Inc. WR9QA3200USBNMEDR6W	3.2 A				1.61 in	1.24 in	2.8 in	CB CCC CE EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL	Wall Mount (Class II)	International	Multi-Blade	ITE (Commercial) Medical		CoC Tier 2 Level VI	5 V	1310 60601-1-11 60601-1-2 60950-1 62368-1	40 °C			75 mW	90 VAC	264 VAC	Multi-Blade (Sold Separately)				16 W	31.5 mm	71 mm	41 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.55
		5	$ 16.11
		10	$ 15.21
		25	$ 14.32
		50	$ 13.42
		210	$ 12.53
		420	$ 12.08
		630	$ 11.90

Description

General part information

WR9QA3200 Series

5V 16 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Documents

Technical documentation and resources
