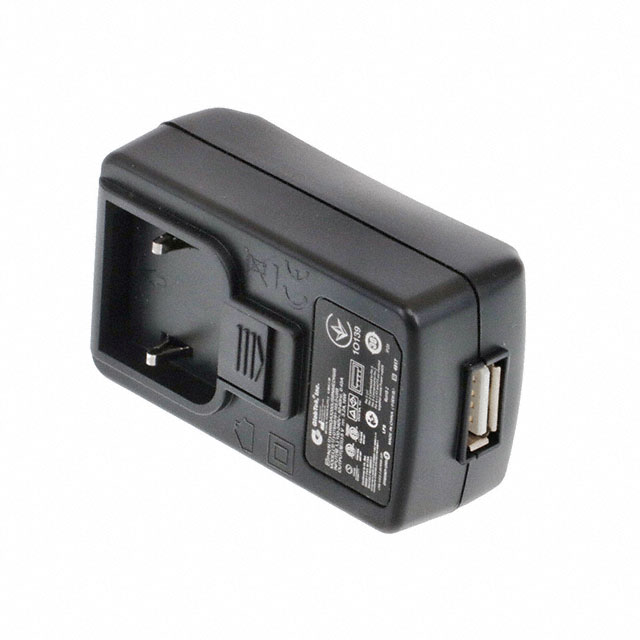

WR9QA3200USBNMEDR6B
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 5V 16W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR9QA3200USBNMEDR6B
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 5V 16W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR9QA3200USBNMEDR6B |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | S-Mark, CB, LPS, EAC, CCC, CE, ETL, UL, PSE, UKRSepro, FCC, RCM |
| Current - Output (Max) [Max] | 3.2 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 16 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.8 in |
| Size / Dimension [x] | 71 mm |
| Size / Dimension [y] | 1.61 in |
| Size / Dimension [y] | 41 mm |
| Size / Dimension [z] | 31.5 mm |
| Size / Dimension [z] | 1.24 in |
| Standard Number | 60601-1-2, 60601-1-11, 62368-1, 1310, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
WR9QA3200 Series
| Part | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Form | Region Utilized | Input Connector | Applications | Polarization | Efficiency | Voltage - Output | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Cord Length | Cord Length | No Load Power Consumption [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Input Type | Output Connector | Output Connector [diameter] | Output Connector [z] | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | 3.2 A | 1.71 in | 1.34 in | 2.91 " | 43.5 mm | 34 mm | 74 mm | BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI | Wall Mount (Class II) | International | Multi-Blade | ITE (Commercial) | Positive Center | Level VI | 5 V | 60950-1 62368-1 | 40 °C | 0 °C | 1.2 m | 47.2 in | 75 mW | 90 VAC | 264 VAC | Multi-Blade (Sold Separately) | Barrel Plug | 2.1 mm 5.5 mm | 11 mm | 16 W | |||
GlobTek, Inc. | 3.2 A | 1.61 in | 1.24 in | 2.8 in | CB CCC CE EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL | Wall Mount (Class II) | International | Multi-Blade | ITE (Commercial) Medical | CoC Tier 2 Level VI | 5 V | 1310 60601-1-11 60601-1-2 60950-1 62368-1 | 40 °C | 0 °C | 75 mW | 90 VAC | 264 VAC | Multi-Blade (Sold Separately) | 16 W | 31.5 mm | 71 mm | 41 mm | |||||||||
GlobTek, Inc. | 3.2 A | 1.61 in | 1.24 in | 2.8 in | CB CCC CE EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL | Wall Mount (Class II) | International | Multi-Blade | ITE (Commercial) Medical | CoC Tier 2 Level VI | 5 V | 1310 60601-1-11 60601-1-2 60950-1 62368-1 | 40 °C | 0 °C | 75 mW | 90 VAC | 264 VAC | Multi-Blade (Sold Separately) | 16 W | 31.5 mm | 71 mm | 41 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.36 | |
| 5 | $ 14.94 | |||
| 10 | $ 14.11 | |||
| 25 | $ 13.28 | |||
| 50 | $ 12.45 | |||
| 210 | $ 11.62 | |||
| 420 | $ 11.21 | |||
| 630 | $ 11.04 | |||
Description
General part information
WR9QA3200 Series
5V 16 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
