DC1RS19JA7R550
ActiveJAE Electronics

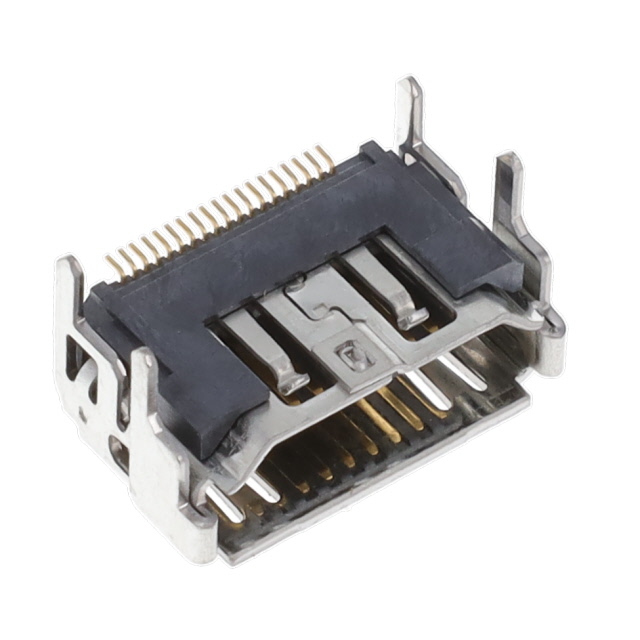

CONN HDMI A 19 POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC1RS19JA7R550
ActiveJAE Electronics
CONN HDMI A 19 POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC1RS19JA7R550 |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.63 | |
| 10 | $ 2.38 | |||
| 25 | $ 2.26 | |||
| 50 | $ 2.21 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.84 | |||
| Digi-Reel® | 1 | $ 2.63 | ||
| 10 | $ 2.38 | |||
| 25 | $ 2.26 | |||
| 50 | $ 2.21 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.84 | |||
| Tape & Reel (TR) | 550 | $ 1.79 | ||
| 1100 | $ 1.52 | |||
| 1650 | $ 1.47 | |||
| 2750 | $ 1.42 | |||
| 5500 | $ 1.37 | |||
Description
General part information
DC1RS19J Series
HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
Documents
Technical documentation and resources
