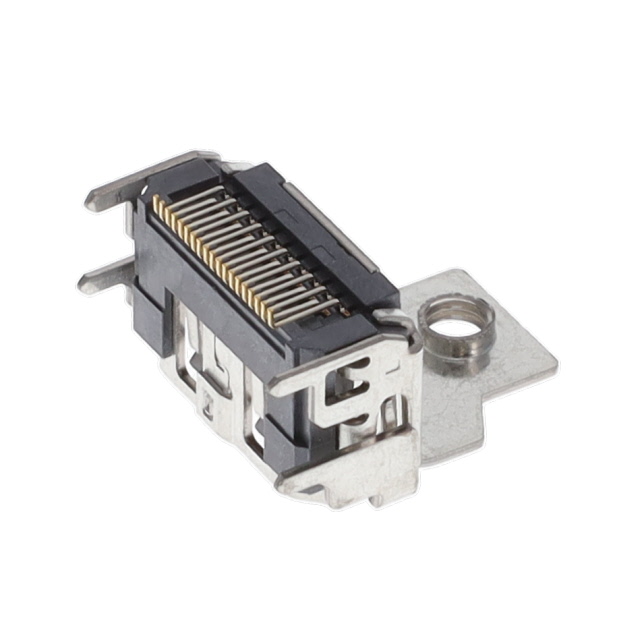

DC1RS19JAX
ActiveJAE Electronics
CONN HDMI A RCPT 19 POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC1RS19JAX |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Panel Mount, Surface Mount, Right Angle, Through Hole |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.20 | |
| 16 | $ 1.01 | |||
| 32 | $ 0.97 | |||
| 40 | $ 0.95 | |||
| 80 | $ 0.91 | |||
| 232 | $ 0.83 | |||
| 440 | $ 0.75 | |||
| 952 | $ 0.66 | |||
| 2400 | $ 0.60 | |||
Description
General part information
DC1RS19J Series
HDMI Receptacle Connector 19 Position Panel Mount; Surface Mount, Right Angle; Through Hole
