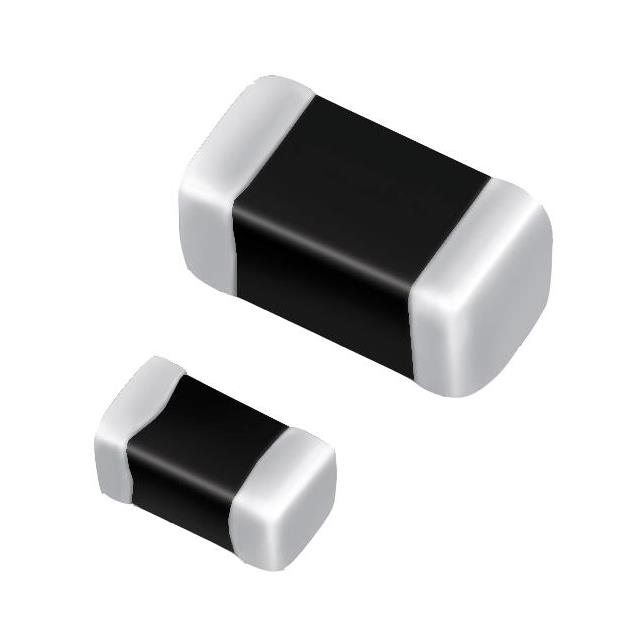

MLVS1210P46301DG
ActiveINPAQ Technology Co., Ltd
VARISTOR 1210 VDC 60V SURGE 450A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLVS1210P46301DG
ActiveINPAQ Technology Co., Ltd
VARISTOR 1210 VDC 60V SURGE 450A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLVS1210P46301DG |
|---|---|
| Capacitance @ Frequency | 300 pF |
| Current - Surge | 450 A |
| Maximum AC Volts [Max] | 46 V |
| Maximum DC Volts [Max] | 60 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Varistor Voltage (Max) [Max] | 83 V |
| Varistor Voltage (Typ) | 76 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 5 | $ 0.36 | |||
| 10 | $ 0.34 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 5 | $ 0.36 | |||
| 10 | $ 0.34 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Strip | 2000 | $ 0.18 | ||
| 4000 | $ 0.17 | |||
| 6000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
| 14000 | $ 0.15 | |||
| 20000 | $ 0.14 | |||
Description
General part information
MLVS1210 Series
76 V 450 A Varistor 1 Circuit Surface Mount, MLCV 1210 (3225 Metric)
Documents
Technical documentation and resources
