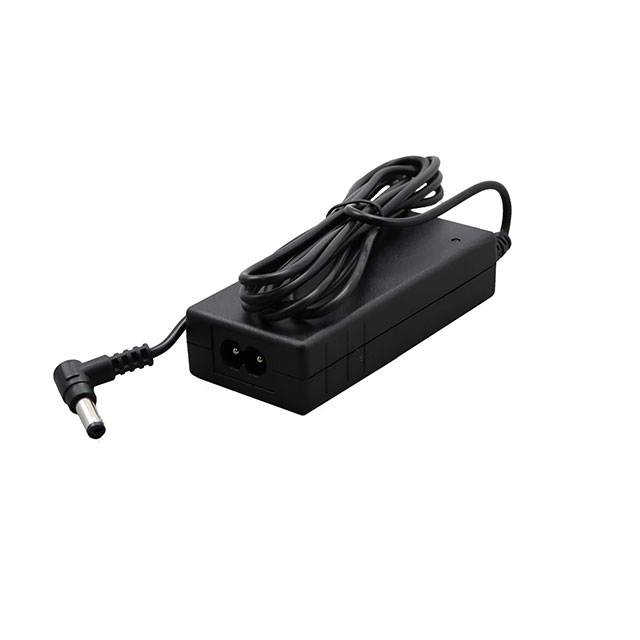

TRE36A180-01G03 VI
ActiveCincon Electronics Co. LTD
AC/DC DESKTOP ADAPTER 18V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRE36A180-01G03 VI
ActiveCincon Electronics Co. LTD
AC/DC DESKTOP ADAPTER 18V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TRE36A180-01G03 VI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, PSE, GS, cULus, FCC |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug R/A |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 12 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | International |
| Size / Dimension [x] | 100 mm |
| Size / Dimension [x] | 3.94 in |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 0.89 in |
| Size / Dimension [z] | 22.5 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 18 V |
TRE36A Series
| Part | Input Type | Input Connector | Current - Output (Max) [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Form | Polarization | No Load Power Consumption [Max] | Output Connector [diameter] | Output Connector [x] | Output Connector | Efficiency | Voltage - Output | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Cord Length | Cord Length | Applications | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Region Utilized |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 2.5 A | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 12 V | -20 C | 60 °C | CE cULus FCC GS PSE | 70.9 in | 1.8 m | ITE (Commercial) | 30 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 1 A | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 36 V | -20 C | 60 °C | CE cULus FCC GS PSE | 70.9 in | 1.8 m | ITE (Commercial) | 36 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 5 A | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 5 V | -20 C | 60 °C | CE cULus FCC GS PSE | 48 in | 1.22 m | ITE (Commercial) | 25 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 2.4 A | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 13.5 V | -20 C | 60 °C | CE cULus FCC GS PSE | 70.9 in | 1.8 m | ITE (Commercial) | 32 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 750 mA | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 48 V | -20 C | 60 °C | CE cULus FCC GS PSE | 70.9 in | 1.8 m | ITE (Commercial) | 36 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 2 A | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 18 V | -20 C | 60 °C | CE cULus FCC GS PSE | 70.9 in | 1.8 m | ITE (Commercial) | 36 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Cincon Electronics Co. LTD | Cord | IEC 320-C8 | 1.5 A | 90 VAC | 264 VAC | Desktop (Class II) | Positive Center | 75 mW | 2.1 mm 5.5 mm | 12 mm | Barrel Plug R/A | CoC Tier 2 Level VI | 24 V | -20 C | 60 °C | CE cULus FCC GS PSE | 70.9 in | 1.8 m | ITE (Commercial) | 36 W | 0.89 in | 100 mm | 22.5 mm | 1.77 " | 3.94 in | 45 mm | International |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.00 | |
| 10 | $ 16.94 | |||
| 25 | $ 16.09 | |||
| 50 | $ 15.45 | |||
| 100 | $ 14.36 | |||
Description
General part information
TRE36A Series
18V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
