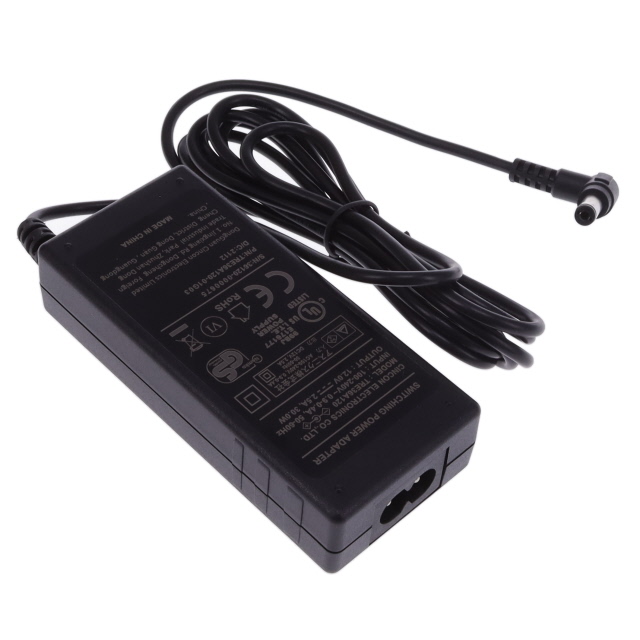

TRE36A120-01G03 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRE36A120-01G03 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 12V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRE36A120-01G03 VI

Applications	ITE (Commercial)
Approval Agency	CE, PSE, GS, cULus, FCC
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	2.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	0.89 in
Size / Dimension [z]	22.5 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TRE36A Series

Part	Input Type	Input Connector	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Polarization	No Load Power Consumption [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Cord Length	Cord Length	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Region Utilized
Cincon Electronics Co. LTD TRE36A120-01G03 VI	Cord	IEC 320-C8	2.5 A	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	12 V	-20 C	60 °C	CE cULus FCC GS PSE	70.9 in	1.8 m	ITE (Commercial)	30 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International
Cincon Electronics Co. LTD TRE36A360-01E03 VI	Cord	IEC 320-C8	1 A	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	36 V	-20 C	60 °C	CE cULus FCC GS PSE	70.9 in	1.8 m	ITE (Commercial)	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International
Cincon Electronics Co. LTD TRE36A050-01G02 VI	Cord	IEC 320-C8	5 A	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	5 V	-20 C	60 °C	CE cULus FCC GS PSE	48 in	1.22 m	ITE (Commercial)	25 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International
Cincon Electronics Co. LTD TRE36A135-01G03 VI	Cord	IEC 320-C8	2.4 A	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	13.5 V	-20 C	60 °C	CE cULus FCC GS PSE	70.9 in	1.8 m	ITE (Commercial)	32 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International
Cincon Electronics Co. LTD TRE36A480-01E03 VI	Cord	IEC 320-C8	750 mA	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	48 V	-20 C	60 °C	CE cULus FCC GS PSE	70.9 in	1.8 m	ITE (Commercial)	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International
Cincon Electronics Co. LTD TRE36A180-01G03 VI	Cord	IEC 320-C8	2 A	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	18 V	-20 C	60 °C	CE cULus FCC GS PSE	70.9 in	1.8 m	ITE (Commercial)	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International
Cincon Electronics Co. LTD TRE36A240-01G03 VI	Cord	IEC 320-C8	1.5 A	90 VAC	264 VAC	Desktop (Class II)	Positive Center	75 mW	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	24 V	-20 C	60 °C	CE cULus FCC GS PSE	70.9 in	1.8 m	ITE (Commercial)	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	International

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.44
		5	$ 18.92
		10	$ 17.87
		25	$ 16.82
		50	$ 15.76
		100	$ 14.71
		250	$ 14.36

Description

General part information

TRE36A Series

12V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
