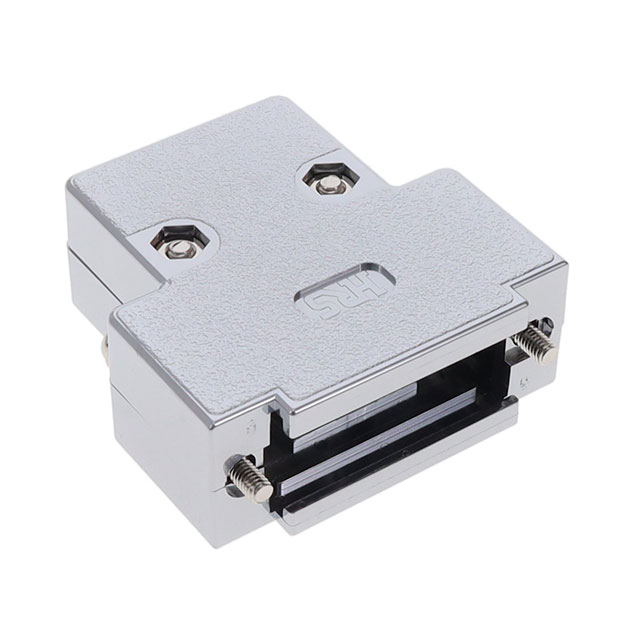

HDA-CTH(10)
ActiveHirose Electric USA, Inc.
CONNECTOR ACCESSORY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDA-CTH(10)
ActiveHirose Electric USA, Inc.
CONNECTOR ACCESSORY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDA-CTH(10) |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Features | Mating Screws M2.6 |
| Hardware | Assembly Hardware |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Number of Positions | 15 |
| Plating | Nickel |
| Primary Material | Plastic |
| Shielding | Unshielded |
HDA-C Series
| Part | Features | Hardware | Cable Type | Color | Material | Number of Positions | Accessory Type | Primary Material | Cable Exit | Shielding | Plating | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Mating Screws 4-40 | Assembly Hardware | Round | Silver | Acrylonitrile Butadiene Styrene (ABS) | 15 | Two Piece Backshell | Plastic | 180 ° | Unshielded | Nickel | |
Hirose Electric USA, Inc. | ||||||||||||
Hirose Electric USA, Inc. | 15 | Cable Clamp | D-Sub Connectors | |||||||||
Hirose Electric USA, Inc. | Mating Screws M2.6 | Assembly Hardware | Round | Silver | Zinc Alloy | 15 | Two Piece Backshell | Metal | 180 ° | Unshielded | Nickel | |
Hirose Electric USA, Inc. | Mating Screws M2.6 | Assembly Hardware | Round | Silver | Acrylonitrile Butadiene Styrene (ABS) | 15 | Two Piece Backshell | Plastic | 180 ° | Unshielded | Nickel | |
Hirose Electric USA, Inc. | Mating Screws 4-40 | Assembly Hardware | Round | Acrylonitrile Butadiene Styrene (ABS) | 15 | Two Piece Backshell | Plastic | 180 ° | Unshielded | |||
Hirose Electric USA, Inc. | Mating Screws 4-40 | Assembly Hardware | Round | Silver | Acrylonitrile Butadiene Styrene (ABS) | 15 | Two Piece Backshell | Plastic | 180 ° | Unshielded | Nickel | |
Hirose Electric USA, Inc. | Mating Screws M2.6 | Assembly Hardware | Round | Silver | Acrylonitrile Butadiene Styrene (ABS) | 15 | Two Piece Backshell | Plastic | 180 ° | Unshielded | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.11 | |
| 10 | $ 8.53 | |||
| 25 | $ 7.70 | |||
| 50 | $ 7.14 | |||
| 100 | $ 6.64 | |||
| 250 | $ 6.04 | |||
| 500 | $ 5.64 | |||
| 1000 | $ 5.28 | |||
Description
General part information
HDA-C Series
15 Position Two Piece Backshell Connector Silver 180° Unshielded
