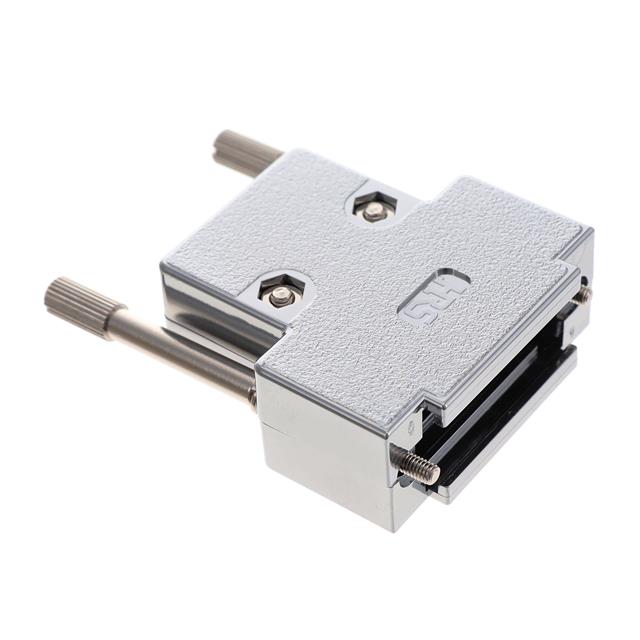

HDA-CTH1(10)

Active

Hirose Electric USA, Inc.

BACKSHELL D-SUB

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

BACKSHELL D-SUB

Technical Specifications

Parameters and characteristics for this part

Specification	HDA-CTH1(10)

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Features	Mating Screws M2.6
Hardware	Assembly Hardware
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	15
Plating	Nickel
Primary Material	Plastic
Shielding	Unshielded

Part	Features	Hardware	Cable Type	Color	Material	Number of Positions	Accessory Type	Primary Material	Cable Exit	Shielding	Plating	For Use With/Related Products
Hirose Electric USA, Inc. HDA-CTH1(4-40)(10)	Mating Screws 4-40	Assembly Hardware	Round	Silver	Acrylonitrile Butadiene Styrene (ABS)	15	Two Piece Backshell	Plastic	180 °	Unshielded	Nickel
Hirose Electric USA, Inc. HDA-CTH(M3)(10)
Hirose Electric USA, Inc. HDA-C(50)						15	Cable Clamp					D-Sub Connectors
Hirose Electric USA, Inc. HDA-CTHA	Mating Screws M2.6	Assembly Hardware	Round	Silver	Zinc Alloy	15	Two Piece Backshell	Metal	180 °	Unshielded	Nickel
Hirose Electric USA, Inc. HDA-CTH(10)	Mating Screws M2.6	Assembly Hardware	Round	Silver	Acrylonitrile Butadiene Styrene (ABS)	15	Two Piece Backshell	Plastic	180 °	Unshielded	Nickel
Hirose Electric USA, Inc. HDA-CTF1(4-40)(50)	Mating Screws 4-40	Assembly Hardware	Round		Acrylonitrile Butadiene Styrene (ABS)	15	Two Piece Backshell	Plastic	180 °	Unshielded
Hirose Electric USA, Inc. HDA-CTH(4-40)(10)	Mating Screws 4-40	Assembly Hardware	Round	Silver	Acrylonitrile Butadiene Styrene (ABS)	15	Two Piece Backshell	Plastic	180 °	Unshielded	Nickel
Hirose Electric USA, Inc. HDA-CTH1(10)	Mating Screws M2.6	Assembly Hardware	Round	Silver	Acrylonitrile Butadiene Styrene (ABS)	15	Two Piece Backshell	Plastic	180 °	Unshielded	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position Two Piece Backshell Connector Silver 180° Unshielded
