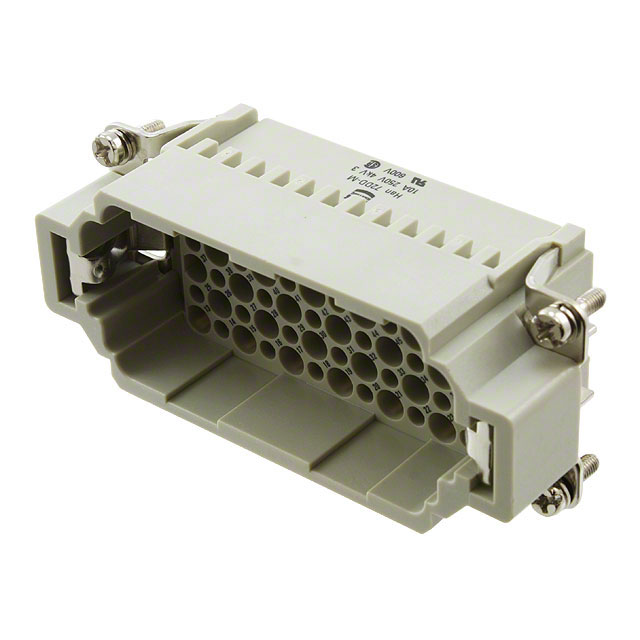

HEAVY DUTY CONNECTOR, 72+PE, LESS CONTACTS, HAN DD SERIES, INSERT, 73 CONTACTS, 16B, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09160723001
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 72+PE, LESS CONTACTS, HAN DD SERIES, INSERT, 73 CONTACTS, 16B, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09160723001 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han® D |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Termination Style | Crimp |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.62 | |
| 10 | $ 27.79 | |||
| 25 | $ 24.97 | |||
| 50 | $ 23.14 | |||
| 100 | $ 21.53 | |||
| 250 | $ 19.71 | |||
| 500 | $ 18.52 | |||
Description
General part information
09160723 Series
The 09160723001 is a 72-position Han DD Male Insert Crimp Module with PCB adapter for use with 16B series connectors. 0.14 to 2.5mm² wire cross section area with crimp terminals. Made of polycarbonate, RAL 7032 (light grey) color.
