05K160-S50D3

Active

Rosenberger

PRECISION N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Part	Type	Accessory Type	Specifications	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Adapter Type	Frequency - Max [Max]	Impedance	Convert From (Adapter End)	Conversion Type	Adapter Series	Adapter Series	Dielectric Material	Body Material	Convert To (Adapter End)	Center Contact Material	Mating Cycles	Mounting Type	Body Finish	Style
Rosenberger 05K160-K20S3	Specialized	Calibration Adapter	7/16 Jack N Type 50Ohm Jack	Network Analyzer
Rosenberger 05K160-K50D3	Specialized	Adapter	7/16 50Ohm Jack N Type 50Ohm Jack	Network Analyzer
Rosenberger 05K160-S50D3					85 °C	-40 °C	Gold	Plug to Jack	8 GHz	50 Ohms	Female Socket N Jack	Between Series	RJC-N	0.4375 DIN	Polyphenylene Ether (PPE)	Brass	7/16 Plug Male Pin	Beryllium Copper Brass	500	Free Hanging (In-Line)	Silver White Bronze	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 375.64

General part information

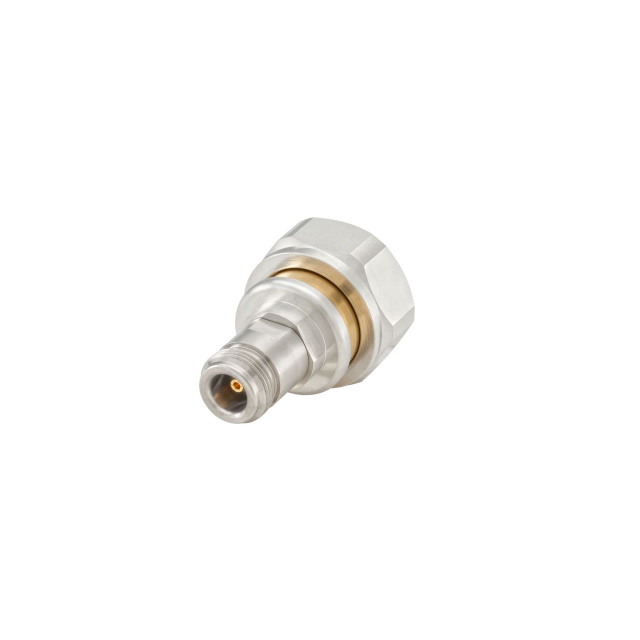

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
