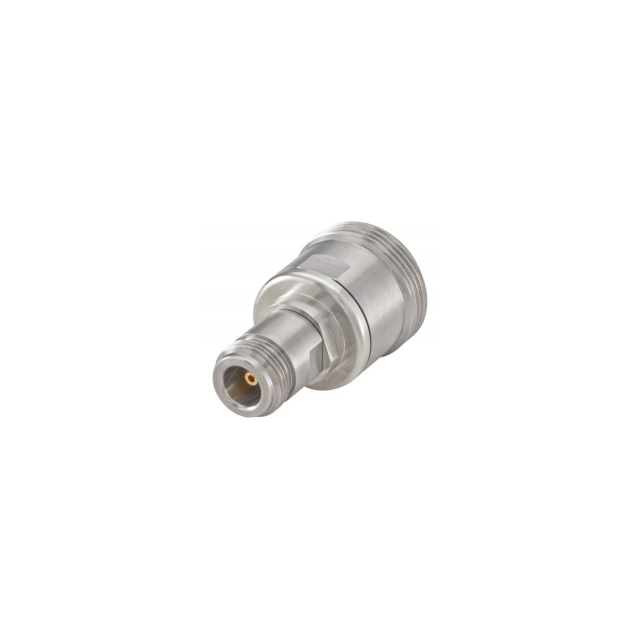

05K160-K20S3
ActiveRosenberger
PRECISION N TYPE CALIBRATION ADA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
05K160-K20S3
ActiveRosenberger
PRECISION N TYPE CALIBRATION ADA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 05K160-K20S3 |
|---|---|
| Accessory Type | Calibration Adapter |
| For Use With/Related Products | Network Analyzer |
| Specifications | N Type 50Ohm Jack, 7/16 Jack |
| Type | Specialized |
05K160 Series
| Part | Type | Accessory Type | Specifications | For Use With/Related Products | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Adapter Type | Frequency - Max [Max] | Impedance | Convert From (Adapter End) | Conversion Type | Adapter Series | Adapter Series | Dielectric Material | Body Material | Convert To (Adapter End) | Center Contact Material | Mating Cycles | Mounting Type | Body Finish | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | Specialized | Calibration Adapter | 7/16 Jack N Type 50Ohm Jack | Network Analyzer | ||||||||||||||||||
Rosenberger | Specialized | Adapter | 7/16 50Ohm Jack N Type 50Ohm Jack | Network Analyzer | ||||||||||||||||||
Rosenberger | 85 °C | -40 °C | Gold | Plug to Jack | 8 GHz | 50 Ohms | Female Socket N Jack | Between Series | RJC-N | 0.4375 DIN | Polyphenylene Ether (PPE) | Brass | 7/16 Plug Male Pin | Beryllium Copper Brass | 500 | Free Hanging (In-Line) | Silver White Bronze | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1084.11 | |
Description
General part information
05K160 Series
Specialized Calibration Adapter for use with Network Analyzer
