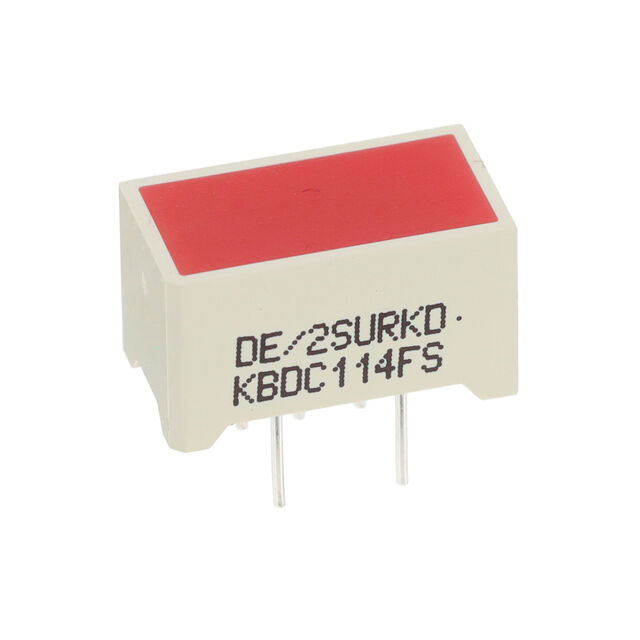

DE2SURKD

Active

Kingbright

LIGHT BAR 630NM RED 7.5X14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DE2SURKD

Active

Kingbright

LIGHT BAR 630NM RED 7.5X14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE2SURKD

Color	Red
Configuration	DIP, Bar - Single
Lens Size [x]	14 mm
Lens Size [y]	7.5 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	170 mcd
Mounting Type	Through Hole
Voltage Rating	1.95 V
Wavelength - Peak	645 nm

DE2 Series

Part	Lens Style	Voltage Rating	Current	Viewing Angle	Color	Lens Size [y]	Lens Size [x]	Wavelength - Peak [custom]	Millicandela Rating	Mounting Type	Lens Type	Configuration	Wavelength - Peak
Kingbright DE2SRD	Rectangle with Flat Top	1.85 V	30 mA	120 °	Red	7.5 mm	14 mm	640 nm	185 mcd	Through Hole	Diffused Tinted
Kingbright DE2SURKD	Rectangle with Flat Top	1.95 V			Red	7.5 mm	14 mm		170 mcd	Through Hole	Diffused Tinted	Bar - Single DIP	645 nm
Kingbright DE2GD	Rectangle with Flat Top		25 mA	120 °	Green	7.5 mm	14 mm		22 mcd	Through Hole	Diffused Tinted		568 nm
Kingbright DE2SGD	Rectangle with Flat Top		25 mA		Green	7.5 mm	14 mm		66 mcd	Through Hole	Diffused Tinted	Bar - Single DIP	565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.81
		36	$ 1.15
		108	$ 0.85
		504	$ 0.78
		1008	$ 0.64
		2016	$ 0.61
		5004	$ 0.60
		10008	$ 0.58

Description

General part information

DE2 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red Diffused, Tinted 1.95V 185mA Rectangle with Flat Top 14.00mm x 7.50mm Through Hole
