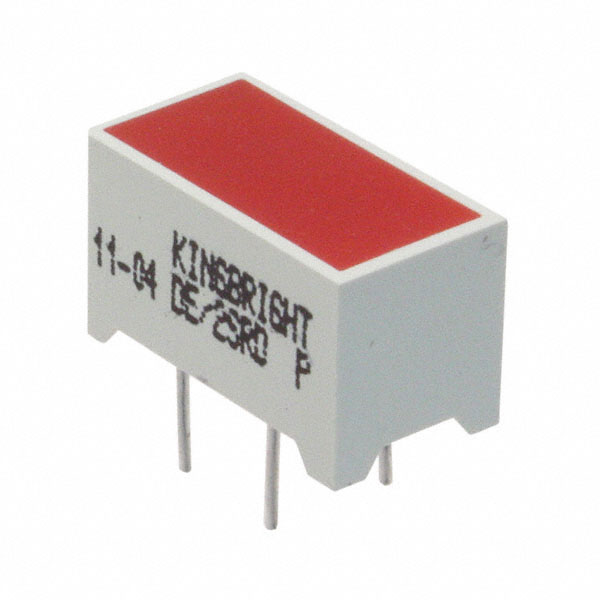

DE2SRD

Obsolete

Kingbright

LED LIGHT BAR 7.5X14MM RED VERT

Search across all available documentation for this part.

Obsolete

Kingbright

LED LIGHT BAR 7.5X14MM RED VERT

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Voltage Rating	Current	Viewing Angle	Color	Lens Size [y]	Lens Size [x]	Wavelength - Peak [custom]	Millicandela Rating	Mounting Type	Lens Type	Configuration	Wavelength - Peak
Kingbright DE2SRD	Rectangle with Flat Top	1.85 V	30 mA	120 °	Red	7.5 mm	14 mm	640 nm	185 mcd	Through Hole	Diffused Tinted
Kingbright DE2SURKD	Rectangle with Flat Top	1.95 V			Red	7.5 mm	14 mm		170 mcd	Through Hole	Diffused Tinted	Bar - Single DIP	645 nm
Kingbright DE2GD	Rectangle with Flat Top		25 mA	120 °	Green	7.5 mm	14 mm		22 mcd	Through Hole	Diffused Tinted		568 nm
Kingbright DE2SGD	Rectangle with Flat Top		25 mA		Green	7.5 mm	14 mm		66 mcd	Through Hole	Diffused Tinted	Bar - Single DIP	565 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Red Diffused, Tinted 1.85V 30mA Rectangle with Flat Top 14.00mm x 7.50mm Through Hole
