XF28M36P63C2ZWTT

Unknown

Texas Instruments

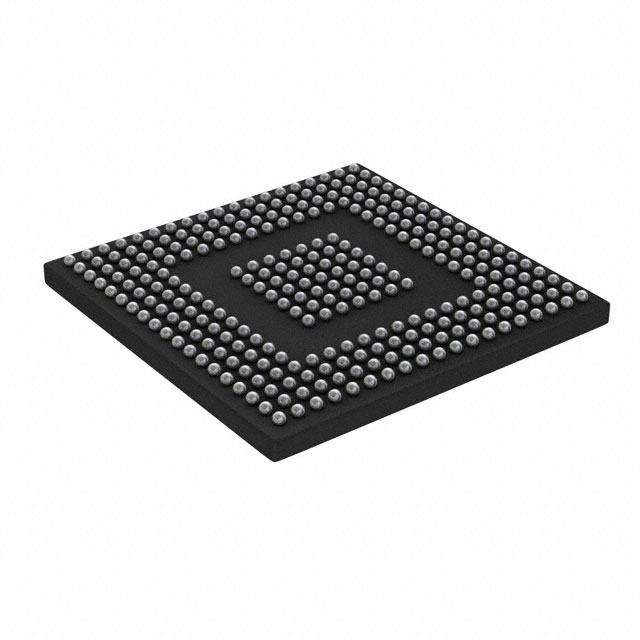

IC MCU 32BIT 1MB FLASH 289NFBGA

Search across all available documentation for this part.

Unknown

Texas Instruments

IC MCU 32BIT 1MB FLASH 289NFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XF28M36P63C2ZWTT

Connectivity	IrDA, CANbus, I2C, SCI, EBI/EMI, SSI, UART/USART, Ethernet, SPI, USB OTG, McBSP
Core Processor	C28x/ARM® Cortex®-M3
Core Size [custom]	32-Bit Dual-Core
Data Converters [custom]	12
Data Converters [custom]	24
Mounting Type	Surface Mount
Number of I/O	142
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	289-LFBGA
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM
Program Memory Size	512 KB, 1 MB
Program Memory Type	FLASH
RAM Size	232 KB
Speed [Max]	150 MHz
Speed [Min]	125 MHz
Voltage - Supply (Vcc/Vdd) [Max]	3.46 V
Voltage - Supply (Vcc/Vdd) [Min]	1.14 V

Part	Voltage - Supply (Vcc/Vdd)	Core Size [custom]	Core Processor	Package / Case	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Mounting Type	RAM Size	Peripherals	Program Memory Size	Speed [Max]	Speed [Min]	Data Converters	Connectivity	Supplier Device Package	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Texas Instruments XF28M35H52C1RFPT	1.8 V 3.3 V	32-Bit Dual-Core	C28x/ARM® Cortex®-M3	144-TQFP Exposed Pad	64	105 °C	-40 °C	FLASH	Surface Mount	136 KB	Brown-out Detect/Reset DMA POR PWM WDT	512 KB	150 MHz	100 MHz	A/D 20x12b	CANbus EBI/EMI Ethernet I2C SPI SSI UART/USART USB USB OTG	144-HTQFP (20x20)
Texas Instruments XF28M3H52C1RFPT
Texas Instruments XF28M36P63C2ZWTT		32-Bit Dual-Core	C28x/ARM® Cortex®-M3	289-LFBGA	142	105 °C	-40 °C	FLASH	Surface Mount	232 KB	Brown-out Detect/Reset DMA POR PWM WDT	1 MB 512 KB	150 MHz	125 MHz		CANbus EBI/EMI Ethernet I2C IrDA McBSP SCI SPI SSI UART/USART USB OTG		Internal	12	24	1.14 V	3.46 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	13	$ 34.88

General part information

C28x/ARM® Cortex®-M3 C2000™ C28x + ARM® Cortex® M3 Concerto™ Microcontroller IC 32-Bit Dual-Core 125MHz/150MHz 512KB/1MB FLASH 289-NFBGA (16x16)

Technical documentation and resources

No documents available
