XF28M35H52C1RFPT

Obsolete

Texas Instruments

IC MCU 32BIT 512KB FLASH 144TQFP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC MCU 32BIT 512KB FLASH 144TQFP

Technical Specifications

Parameters and characteristics for this part

Specification	XF28M35H52C1RFPT

Connectivity	Ethernet, SPI, I2C, EBI/EMI, CANbus, UART/USART, USB, SSI, USB OTG
Core Processor	C28x/ARM® Cortex®-M3
Core Size [custom]	32-Bit Dual-Core
Data Converters	A/D 20x12b
Mounting Type	Surface Mount
Number of I/O	64
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

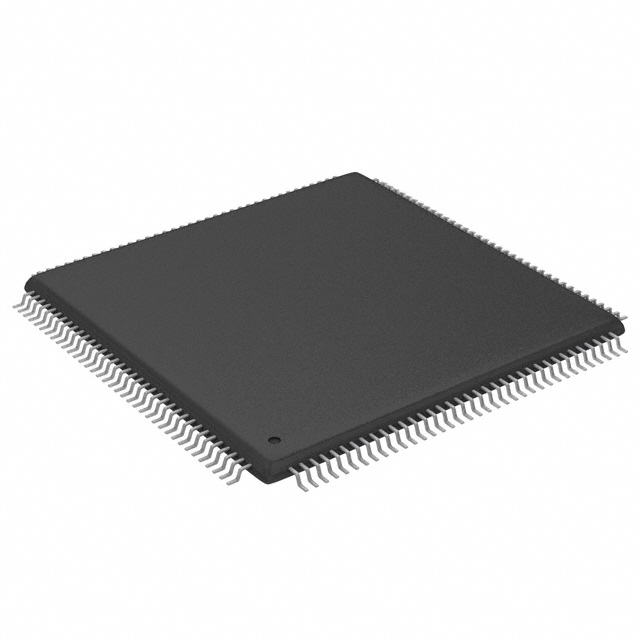

Package / Case	144-TQFP Exposed Pad
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM
Program Memory Size	512 KB
Program Memory Type	FLASH
RAM Size	136 KB
Speed [Max]	150 MHz
Speed [Min]	100 MHz
Supplier Device Package	144-HTQFP (20x20)
Voltage - Supply (Vcc/Vdd)	1.8 V, 3.3 V

Part	Voltage - Supply (Vcc/Vdd)	Core Size [custom]	Core Processor	Package / Case	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Mounting Type	RAM Size	Peripherals	Program Memory Size	Speed [Max]	Speed [Min]	Data Converters	Connectivity	Supplier Device Package	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Texas Instruments XF28M35H52C1RFPT	1.8 V 3.3 V	32-Bit Dual-Core	C28x/ARM® Cortex®-M3	144-TQFP Exposed Pad	64	105 °C	-40 °C	FLASH	Surface Mount	136 KB	Brown-out Detect/Reset DMA POR PWM WDT	512 KB	150 MHz	100 MHz	A/D 20x12b	CANbus EBI/EMI Ethernet I2C SPI SSI UART/USART USB USB OTG	144-HTQFP (20x20)
Texas Instruments XF28M3H52C1RFPT
Texas Instruments XF28M36P63C2ZWTT		32-Bit Dual-Core	C28x/ARM® Cortex®-M3	289-LFBGA	142	105 °C	-40 °C	FLASH	Surface Mount	232 KB	Brown-out Detect/Reset DMA POR PWM WDT	1 MB 512 KB	150 MHz	125 MHz		CANbus EBI/EMI Ethernet I2C IrDA McBSP SCI SPI SSI UART/USART USB OTG		Internal	12	24	1.14 V	3.46 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

C28x/ARM® Cortex®-M3 C2000™ C28x + ARM® Cortex® M3 Concerto™ Microcontroller IC 32-Bit Dual-Core 100MHz/150MHz 512KB/512KB FLASH 144-HTQFP (20x20)

Technical documentation and resources

No documents available
