45-180S.1C90.003.108

Active

EAO

ROTARY SWITCH, 3 POSITION, 1 POLE, 45 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

45-180S.1C90.003.108

Active

EAO

ROTARY SWITCH, 3 POSITION, 1 POLE, 45 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45-180S.1C90.003.108

Approval Agency	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

45-180S Series

Part	Mechanical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Ingress Protection	Voltage Rating - DC	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Switch Function	Circuit	Current Rating (Amps)	Illumination
EAO 45-180S.2C90.003.108	1000000 Cycles	22.3 mm	500 V	IP66 IP67 IP69K	500 V	Screw Terminal	CCC CE CSA UL VDE	70 °C	-25 °C	Standard	Mom-Off-Mom	DPST-NO	10 A	Non-Illuminated
EAO 45-180S.1C90.003.108	1000000 Cycles	22.3 mm	500 V	IP66 IP67 IP69K	500 V	Screw Terminal	CCC CE CSA UL VDE	70 °C	-25 °C	Standard	Mom-Off-Mom	DPST-NO	10 A	Non-Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.24
		10	$ 53.97
		25	$ 50.35
		50	$ 48.38
		100	$ 45.09
Newark	Each	10	$ 59.11

Description

General part information

45-180S Series

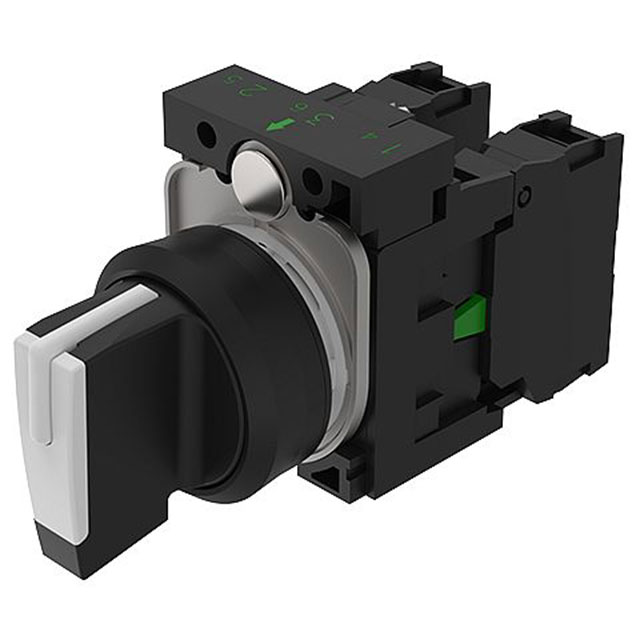

The 45-180S.1C90.003.108 from EAO is a selector switch. This actuator is intuitive to operate, provide distinctive tactile feedback, has a long service life of up to 1 million switching cycles and high front protection (up to IP69K).
