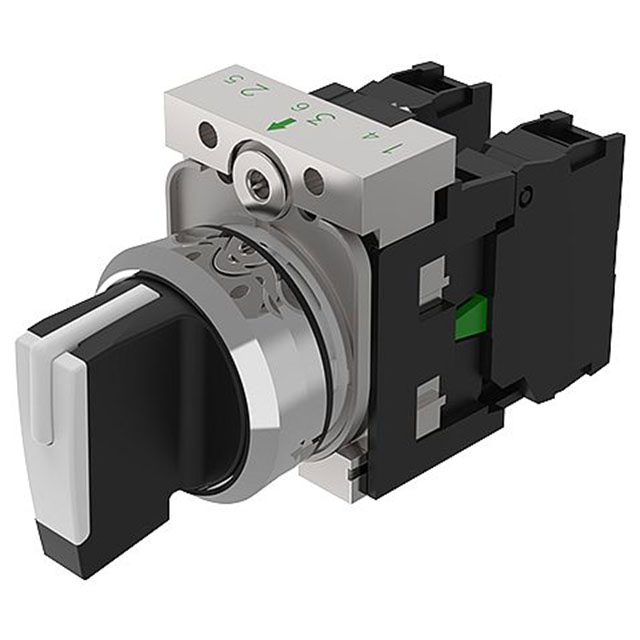

45-180S.2C90.003.108

Active

EAO

SWITCH SELECT 3POS DPST 10A 500V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 3POS DPST 10A 500V

Technical Specifications

Parameters and characteristics for this part

Specification	45-180S.2C90.003.108

Approval Agency	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

Part	Mechanical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Ingress Protection	Voltage Rating - DC	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Switch Function	Circuit	Current Rating (Amps)	Illumination
EAO 45-180S.2C90.003.108	1000000 Cycles	22.3 mm	500 V	IP66 IP67 IP69K	500 V	Screw Terminal	CCC CE CSA UL VDE	70 °C	-25 °C	Standard	Mom-Off-Mom	DPST-NO	10 A	Non-Illuminated
EAO 45-180S.1C90.003.108	1000000 Cycles	22.3 mm	500 V	IP66 IP67 IP69K	500 V	Screw Terminal	CCC CE CSA UL VDE	70 °C	-25 °C	Standard	Mom-Off-Mom	DPST-NO	10 A	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 3 Position DPST-NO 10A (AC/DC) 500 V Panel Mount
