1800222

Active

Phoenix Contact

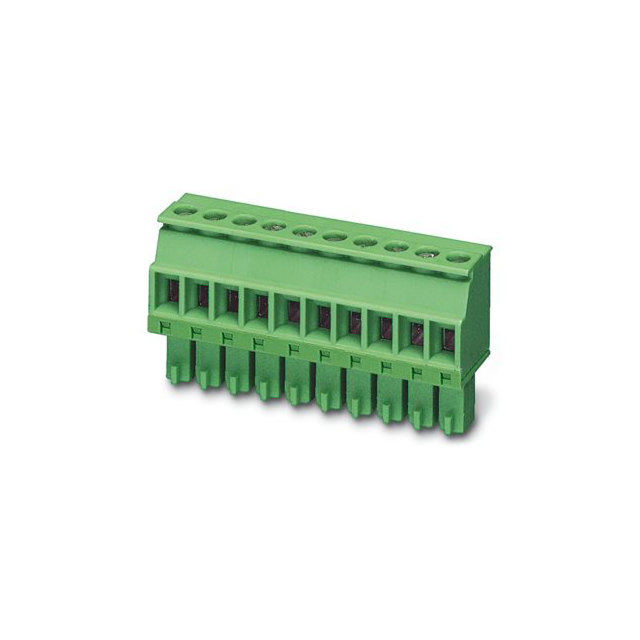

PLUGGABLE TERMINAL BLOCKS MCVR1.5/ 8-ST-3 81BK

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS MCVR1.5/ 8-ST-3 81BK

Technical Specifications

Parameters and characteristics for this part

Pluggable Terminal Blocks MCVR1.5/ 8-ST-3 81BK

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Positions Per Level	Contact Mating Finish	Wire Strip Length	Material Flammability Rating	Number of Levels	Screw Size	Type	Plug Wire Entry	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Voltage - IEC	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Color	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Termination Style	Current - UL	Housing Material	Current - IEC	Mounting Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1827172	14 AWG	30 AWG	7	Tin	7 mm	UL94 V-0	1	M2	Plug Female Sockets	90 °	0.15 in	3.81 mm	0.752 "	19.1 mm	320 V	7	0.14 mm²	1.5 mm²	300 V	Green	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Screw - Rising Cage Clamp	8 A	Polyamide (PA) Nylon	8 A	Free Hanging (In-Line)
Phoenix Contact 1800222	14 AWG	30 AWG	8	Tin	7 mm		1	M2	Plug Female Sockets	90 °	0.15 in	3.81 mm	0.752 "	19.1 mm		8			300 V	Black	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Screw - Rising Cage Clamp	8 A		8 A	Free Hanging (In-Line)	0.14 mm˛	1.5 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks MCVR1.5/ 8-ST-3 81BK
