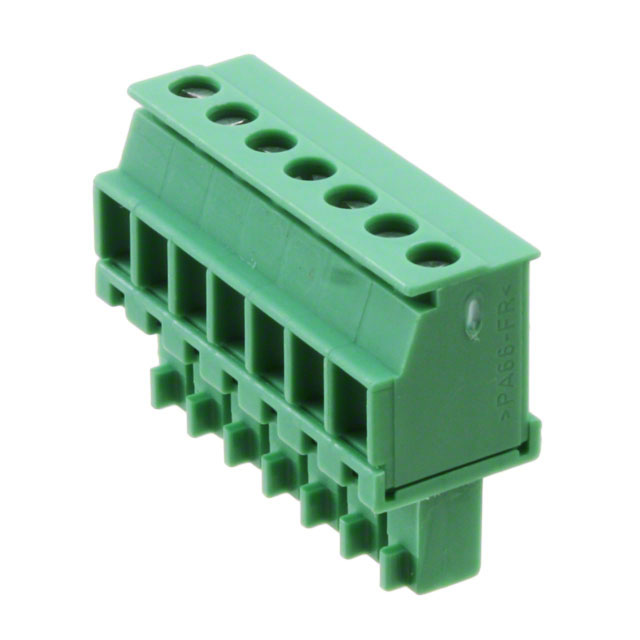

1827172

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCK, 3.81 MM, 7 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCK, 3.81 MM, 7 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	1827172

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.752 "
Insulation Height	19.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	7
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Plug Wire Entry	90 °
Positions Per Level	7
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm
Torque - Screw [Min]	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²
Wire Strip Length	7 mm

Pluggable Terminal Blocks MCVR1.5/ 8-ST-3 81BK

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Positions Per Level	Contact Mating Finish	Wire Strip Length	Material Flammability Rating	Number of Levels	Screw Size	Type	Plug Wire Entry	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Voltage - IEC	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Color	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Termination Style	Current - UL	Housing Material	Current - IEC	Mounting Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1827172	14 AWG	30 AWG	7	Tin	7 mm	UL94 V-0	1	M2	Plug Female Sockets	90 °	0.15 in	3.81 mm	0.752 "	19.1 mm	320 V	7	0.14 mm²	1.5 mm²	300 V	Green	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Screw - Rising Cage Clamp	8 A	Polyamide (PA) Nylon	8 A	Free Hanging (In-Line)
Phoenix Contact 1800222	14 AWG	30 AWG	8	Tin	7 mm		1	M2	Plug Female Sockets	90 °	0.15 in	3.81 mm	0.752 "	19.1 mm		8			300 V	Black	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Screw - Rising Cage Clamp	8 A		8 A	Free Hanging (In-Line)	0.14 mm˛	1.5 mm˛
