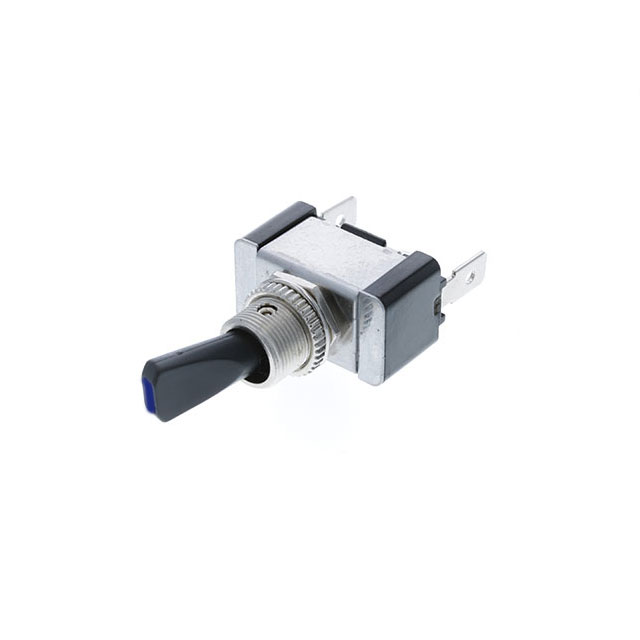

TA1A-1A-DC-1-UL
ActiveSwitch Components
SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA1A-1A-DC-1-UL
ActiveSwitch Components
SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA1A-1A-DC-1-UL |
|---|---|
| Actuator Length [x] | 16 mm |
| Actuator Type | Flatted |
| Bushing Thread | M12 |
| Bushing Thread | 0.75 |
| Circuit | SPST |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 12 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.76 | |
| 10 | $ 6.47 | |||
| 25 | $ 6.21 | |||
| 50 | $ 6.08 | |||
| 100 | $ 5.88 | |||
| 250 | $ 5.45 | |||
| 500 | $ 4.54 | |||
| 1000 | $ 4.16 | |||
Description
General part information
TA1A-1A Series
Toggle Switch SPST Panel Mount
