TA1A-1A-DC-1-RL

Active

Switch Components

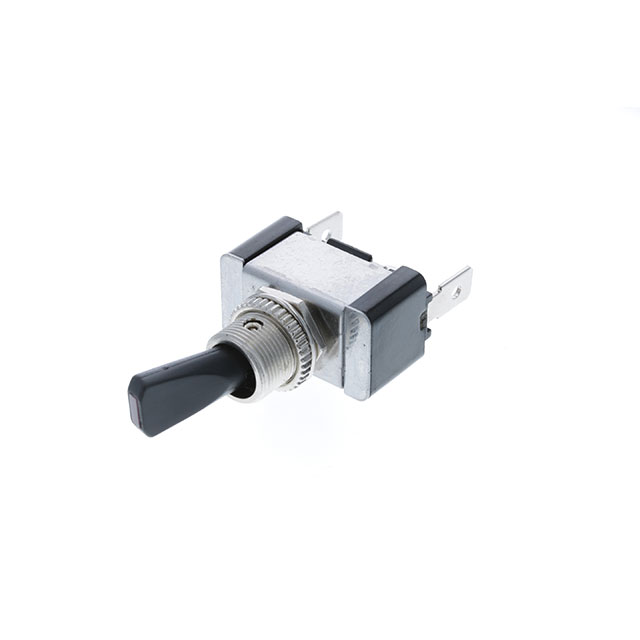

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TA1A-1A-DC-1-RL

Actuator Length [x]	16 mm
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Illumination	Electrical Life	Termination Style	Voltage Rating - DC	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Illumination Type, Color	Circuit	Bushing Thread	Bushing Thread
Switch Components TA1A-1A-DC-1-UL	20 A	Illuminated	6000 Cycles	Quick Connect - 0.250" (6.3mm)	12 V	16 mm	12.2 mm	85 °C	-20 C	On-Off	Flatted	12 VDC	Blue LED	SPST	M12	0.75
Switch Components TA1A-1A-DC-1-GL	20 A	Illuminated	6000 Cycles	Quick Connect - 0.250" (6.3mm)	12 V	16 mm	12.2 mm	85 °C	-20 C	On-Off	Flatted	12 VDC	Green LED	SPST	M12	0.75
Switch Components TA1A-1A-DC-1-RL	20 A	Illuminated	6000 Cycles	Quick Connect - 0.250" (6.3mm)	12 V	16 mm	12.2 mm	85 °C	-20 C	On-Off	Flatted	12 VDC	LED Red	SPST	M12	0.75

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.15

General part information

Toggle Switch SPST Panel Mount
