C09131D0122002U

Active

Amphenol Tuchel Industrial

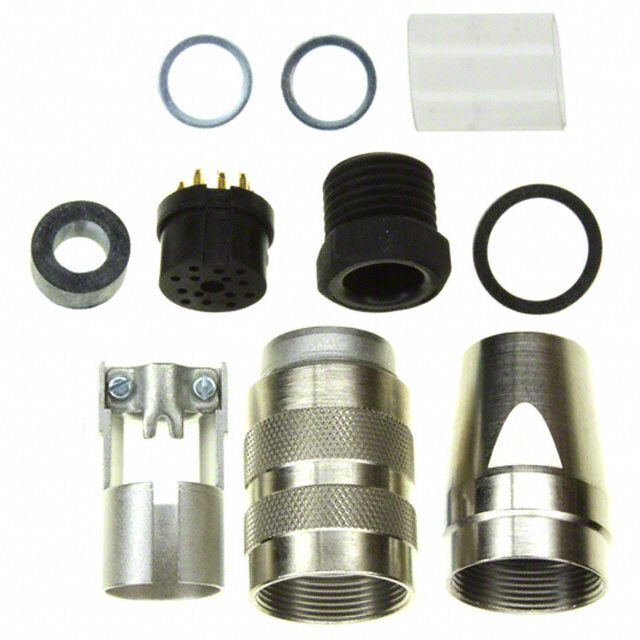

CONN PLUG FMALE 12P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

C09131D0122002U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 12P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09131D0122002U

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	3 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Voltage Rating	250 VDC

C09131D Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Color	Shielding	Orientation	Voltage Rating	Connector Type	Shell Size - Insert	Contact Finish - Mating	Shell Finish	Current Rating (Amps)	Ingress Protection	Features	Shell Material	Number of Positions
Amphenol Tuchel Industrial C09131D0031002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-3	Silver	Nickel	10 A	IP65 IP67 IP69K	Strain Relief	Die Cast
Amphenol Tuchel Industrial C09131D0051002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-5	Silver	Nickel	7 A	IP65 IP67 IP69K	Strain Relief	Die Cast
Amphenol Tuchel Industrial C09131D0061014U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver		Keyed		Female Sockets Plug	M16-6	Silver	Nickel		IP68 IP69K		Zinc Die Cast	6
Amphenol Tuchel Industrial C09131D0122002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	250 VDC	Female Sockets Plug	M16-12	Gold	Nickel	3 A	IP65 IP67 IP69K	Strain Relief	Die Cast	12
Amphenol Tuchel Industrial C09131D0081014U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver		Keyed		Female Sockets Plug	M16-8	Silver	Nickel		IP68 IP69K		Zinc Die Cast	8
Amphenol Tuchel Industrial C09131D0081002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-8	Silver	Nickel	7 A	IP65 IP67 IP69K	Strain Relief	Die Cast	8
Amphenol Tuchel Industrial C09131D0071002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-7	Silver	Nickel	7 A	IP65 IP67 IP69K	Strain Relief	Die Cast	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.67
		10	$ 20.12
		25	$ 19.21

Description

General part information

C09131D Series

12 Position Circular Connector Plug, Female Sockets Solder Cup
