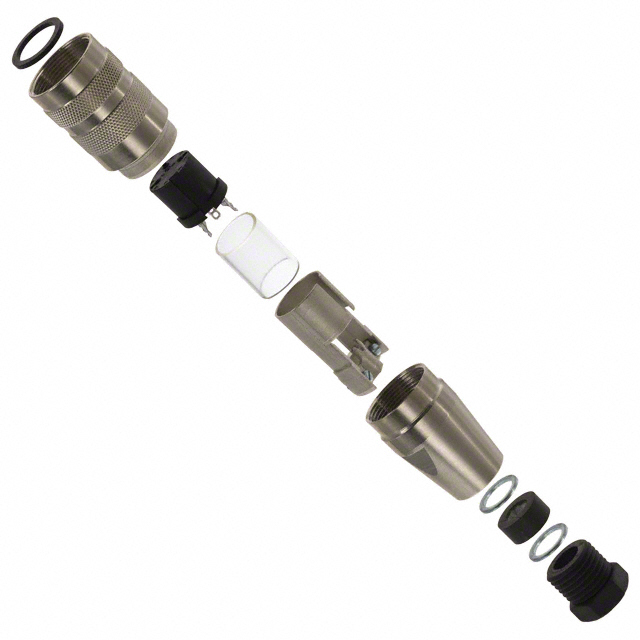

C09131D0051002U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

C09131D0051002U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09131D0051002U

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	60 VDC

C09131D Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Color	Shielding	Orientation	Voltage Rating	Connector Type	Shell Size - Insert	Contact Finish - Mating	Shell Finish	Current Rating (Amps)	Ingress Protection	Features	Shell Material	Number of Positions
Amphenol Tuchel Industrial C09131D0031002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-3	Silver	Nickel	10 A	IP65 IP67 IP69K	Strain Relief	Die Cast
Amphenol Tuchel Industrial C09131D0051002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-5	Silver	Nickel	7 A	IP65 IP67 IP69K	Strain Relief	Die Cast
Amphenol Tuchel Industrial C09131D0061014U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver		Keyed		Female Sockets Plug	M16-6	Silver	Nickel		IP68 IP69K		Zinc Die Cast	6
Amphenol Tuchel Industrial C09131D0122002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	250 VDC	Female Sockets Plug	M16-12	Gold	Nickel	3 A	IP65 IP67 IP69K	Strain Relief	Die Cast	12
Amphenol Tuchel Industrial C09131D0081014U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver		Keyed		Female Sockets Plug	M16-8	Silver	Nickel		IP68 IP69K		Zinc Die Cast	8
Amphenol Tuchel Industrial C09131D0081002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-8	Silver	Nickel	7 A	IP65 IP67 IP69K	Strain Relief	Die Cast	8
Amphenol Tuchel Industrial C09131D0071002U	Free Hanging (In-Line)	100 °C	-40 °C	Metal	Silver	Shielded	Keyed	60 VDC	Female Sockets Plug	M16-7	Silver	Nickel	7 A	IP65 IP67 IP69K	Strain Relief	Die Cast	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.17
		10	$ 16.62
		25	$ 15.75
		50	$ 15.52
		200	$ 13.70
		400	$ 12.78
		600	$ 12.51

Description

General part information

C09131D Series

5 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
