5530233200F
ActiveDIALIGHT

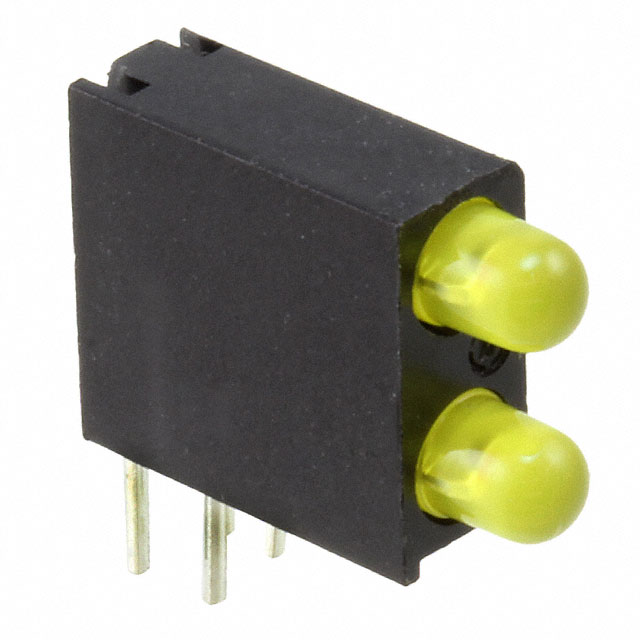

LED CBI 3MM BI-LVL YELLOW RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5530233200F
ActiveDIALIGHT
LED CBI 3MM BI-LVL YELLOW RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530233200F |
|---|---|
| Color | Yellow (x 2) |
| Configuration | 2 High |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 5 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 1.8 V |
| Wavelength - Peak | 591 nm |
5530233 Series
| Part | Color | Millicandela Rating | Lens Type | Current | Mounting Type | Configuration | Voltage Rating | Wavelength - Peak | Lens Size | Lens Size | Lens Style | Viewing Angle | Configuration [z] | Configuration [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT | Yellow (x 2) | 1.6 mcd | Diffused Tinted | 2 mA | Through Hole Right Angle | 2 High | 1.8 V | 585 nm | 3 mm | T-1 | Round with Domed Top | 60 ° | ||
DIALIGHT | Yellow (x 2) | 5 mcd | Diffused Tinted | Through Hole Right Angle | 2 High | 1.8 V | 591 nm | 3 mm | T-1 | Round with Domed Top | 60 ° | |||
DIALIGHT | Yellow (x 2) | 5 mcd | Diffused Tinted | Through Hole Right Angle | 2 High | 1.8 V | 591 nm | 3 mm | T-1 | Round with Domed Top | 60 ° | |||
DIALIGHT | Yellow (x 2) | 5 mcd | Diffused Tinted | Through Hole Right Angle | 2 High | 1.8 V | 591 nm | 3 mm | T-1 | Round with Domed Top | 60 ° | |||
DIALIGHT | Through Hole Right Angle | 3 mm | T-1 | Round with Domed Top | ||||||||||
DIALIGHT | Yellow (x 2) | 5 mcd | Diffused Tinted | Through Hole Right Angle | 2 High | 1.8 V | 591 nm | 3 mm | T-1 | Round with Domed Top | 60 ° | |||
DIALIGHT | Yellow (x 8) | 5 mcd | Diffused Tinted | Through Hole Right Angle | 1.8 V | 591 nm | 60 ° | 2 | 4 | |||||
DIALIGHT | Yellow (x 2) | 1.6 mcd | Through Hole Right Angle | 2 High | 1.9 V | 585 nm | 3 mm | T-1 | Round with Domed Top | 50 ° | ||||
DIALIGHT | Yellow (x 2) | 5 mcd | Diffused Tinted | Through Hole Right Angle | 2 High | 1.8 V | 591 nm | 3 mm | T-1 | Round with Domed Top | 60 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.66 | |
| 10 | $ 1.75 | |||
| 100 | $ 1.28 | |||
| 500 | $ 1.10 | |||
| 1000 | $ 1.04 | |||
| 2000 | $ 0.99 | |||
| 5000 | $ 0.95 | |||
| 10000 | $ 0.92 | |||
Description
General part information
5530233 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Yellow (x 2) Diffused, Tinted 1.8V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
