5530233400F

Active

DIALIGHT

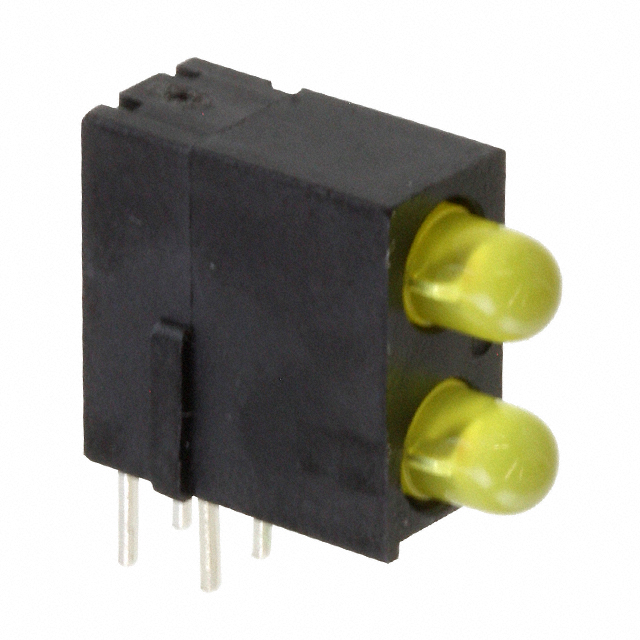

LED CBI 3MM BI-LVL YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530233400F

Active

DIALIGHT

LED CBI 3MM BI-LVL YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530233400F

Color	Yellow (x 2)
Configuration	2 High
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	5 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	1.8 V
Wavelength - Peak	591 nm

5530233 Series

Part	Color	Millicandela Rating	Lens Type	Current	Mounting Type	Configuration	Voltage Rating	Wavelength - Peak	Lens Size	Lens Size	Lens Style	Viewing Angle	Configuration [z]	Configuration [y]
DIALIGHT 5530233300F	Yellow (x 2)	1.6 mcd	Diffused Tinted	2 mA	Through Hole Right Angle	2 High	1.8 V	585 nm	3 mm	T-1	Round with Domed Top	60 °
DIALIGHT 5530233400F	Yellow (x 2)	5 mcd	Diffused Tinted		Through Hole Right Angle	2 High	1.8 V	591 nm	3 mm	T-1	Round with Domed Top	60 °
DIALIGHT 5530233210F	Yellow (x 2)	5 mcd	Diffused Tinted		Through Hole Right Angle	2 High	1.8 V	591 nm	3 mm	T-1	Round with Domed Top	60 °
DIALIGHT 5530233100F	Yellow (x 2)	5 mcd	Diffused Tinted		Through Hole Right Angle	2 High	1.8 V	591 nm	3 mm	T-1	Round with Domed Top	60 °
DIALIGHT 5530233804F					Through Hole Right Angle				3 mm	T-1	Round with Domed Top
DIALIGHT 5530233200F	Yellow (x 2)	5 mcd	Diffused Tinted		Through Hole Right Angle	2 High	1.8 V	591 nm	3 mm	T-1	Round with Domed Top	60 °
DIALIGHT 5530233004F	Yellow (x 8)	5 mcd	Diffused Tinted		Through Hole Right Angle		1.8 V	591 nm				60 °	2	4
DIALIGHT 5530233410F	Yellow (x 2)	1.6 mcd			Through Hole Right Angle	2 High	1.9 V	585 nm	3 mm	T-1	Round with Domed Top	50 °
DIALIGHT 5530233306F	Yellow (x 2)	5 mcd	Diffused Tinted		Through Hole Right Angle	2 High	1.8 V	591 nm	3 mm	T-1	Round with Domed Top	60 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.66
		10	$ 1.75
		100	$ 1.28
		500	$ 1.10
		1000	$ 1.04
		2000	$ 0.99
		5000	$ 0.95
		10000	$ 0.92

Description

General part information

5530233 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Yellow (x 2) Diffused, Tinted 1.8V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
