0192020054

Active

Molex

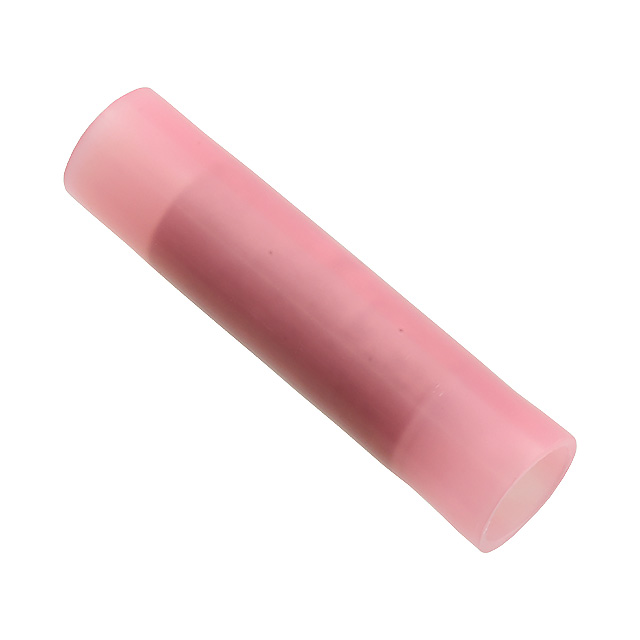

CONN SPLICE 8 AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN SPLICE 8 AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0192020054

Color	Red
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge	8 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Number of Wire Entries	Termination	Insulation	Color	Wire Gauge
Molex 0192020039	12 AWG	10 AWG	Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Yellow
Molex 0192020020			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020035			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020055			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue	6 AWG
Molex 0192020026			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020136
Molex 0192020027			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020011	22 AWG	17.5 AWG	Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Red
Molex 0192020189	22 AWG	17.5 AWG	Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Red
Molex 0192020054			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Red	8 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 8 AWG Red
