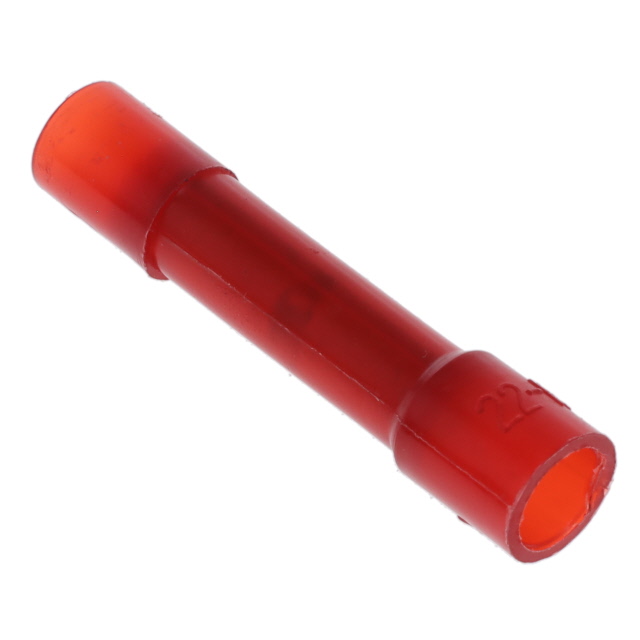

0192020011

Active

Molex

CONN SPLICE 18-22 AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN SPLICE 18-22 AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0192020011

Color	Red
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Number of Wire Entries	Termination	Insulation	Color	Wire Gauge
Molex 0192020039	12 AWG	10 AWG	Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Yellow
Molex 0192020020			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020035			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020055			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue	6 AWG
Molex 0192020026			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020136
Molex 0192020027			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Blue
Molex 0192020011	22 AWG	17.5 AWG	Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Red
Molex 0192020189	22 AWG	17.5 AWG	Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Red
Molex 0192020054			Butt Splice Individual Openings Inline	2	Crimp	Fully Insulated	Red	8 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
